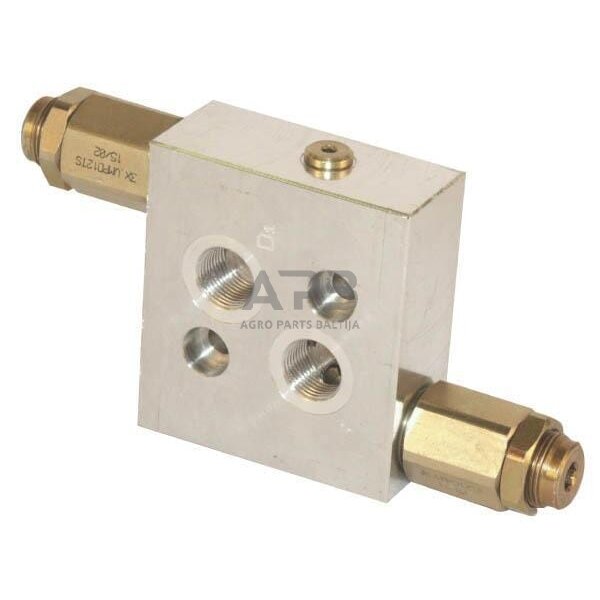

Vožtuvas 25 A 16 OMV A 1"BSP, VADDF25001
-
Vožtuvas 25 A 16 OMV A 1"BSP, VADDF25001
Kodas: 834456
Prekiniam ženklui
Walvoil
-
Part number VADDF25001
EAN
UnitEach
Technical infoProtect a hydromotor against occurring pressure peaks as a result of external forces, which can cause an abrupt stop or the direct reversal of the direction of rotation. Intermittent switching time, quick responding.
Max. flow rate180 l/min
Max working pressure210 BAR
Adjustable pressure range5-210 BAR
Adjustment typeSocket screw
Connection typeThread
Connection thread typeBSP
Connection thread diameter1 Inch
Designed forOMV SMV
TypeSpring-loaded differential valve

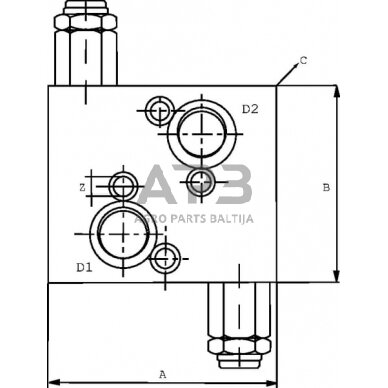

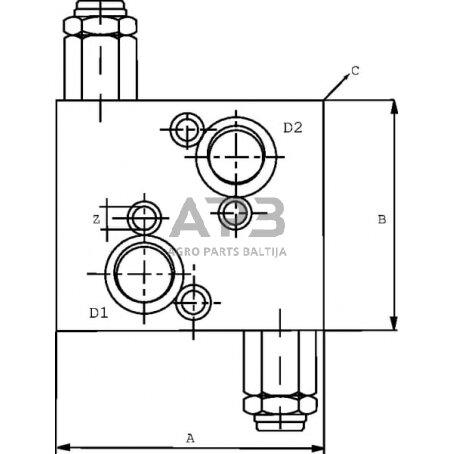

AHousing length130 mm
Housing width60 mm
BHousing height150 mm
Mounting holes diameter12.5 mm
Extra infoSuitable for mounting on; OMV SMV
