Prekių katalogas

Amortizatoriai stabdžių mechanizmo

  • Amortizatorius stabdžių mechanizmo AL-KO 251S, 373202
    Kodas: 851179

    A Total length 330 mm
    B Rod stroke 85 mm
    C Cylinder diameter 27 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 33 mm
    F Mounting diameter - rod side connection 12 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 30 mm
    D Mounting diameter - cylinder side connection 16 mm

    6000
    Amortizatorius stabdžių mechanizmo AL-KO 131R, 357048
    Kodas: 851180
    A Total length 350 mm
    B Rod stroke 100 mm
    C Cylinder diameter 28 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 39 mm
    F Mounting diameter - rod side connection 11 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 30 mm
    D Mounting diameter - cylinder side connection 16 mm
    6000
    Amortizatorius stabdžių mechanizmo AL-KO 161S, 365728
    Kodas: 851173
    A Total length 325 mm
    B Rod stroke 110 mm
    C Cylinder diameter 24 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 24 mm
    F Mounting diameter - rod side connection 13 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 30 mm
    D Mounting diameter - cylinder side connection 16 mm
    6000

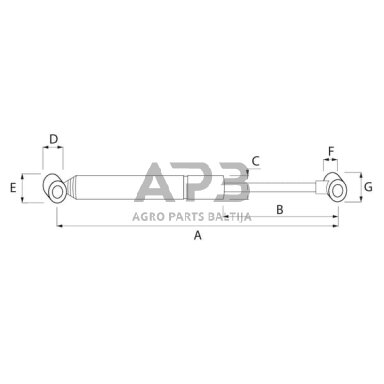

    Amortizatorius stabdžių mechanizmo AL-KO 161S, 370558
    Kodas: 851172
    A Total length 505 mm
    B Rod stroke 125 mm
    C Cylinder diameter 24 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 24 mm
    F Mounting diameter - rod side connection 12 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 55 mm
    D Mounting diameter - cylinder side connection 13 mm
    6000

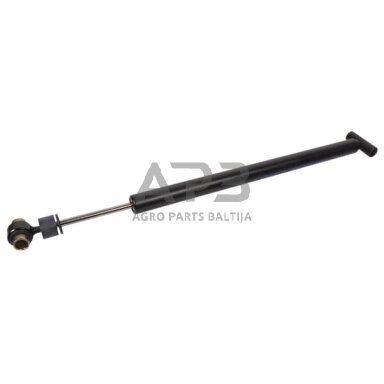

    Amortizatorius stabdžių mechanizmo AL-KO 583529
    Kodas: 851171
    A Total length 525 mm
    B Rod stroke 105 mm
    C Cylinder diameter 24 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 41.5 mm
    F Mounting diameter - rod side connection 12 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 55 mm
    D Mounting diameter - cylinder side connection 13 mm
    6000
    Amortizatorius stabdžių mechanizmo AL-KO 365482
    Kodas: 851166
    A Total length 325 mm
    B Rod stroke 110 mm
    C Cylinder diameter 24 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 38 mm
    F Mounting diameter - rod side connection 13 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 30 mm
    D Mounting diameter - cylinder side connection 16 mm
    6000
    Amortizatorius stabdžių mechanizmo AL-KO 583528
    Kodas: 851165
    A Total length 505 mm
    B Rod stroke 125 mm
    C Cylinder diameter 24 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 24 mm
    F Mounting diameter - rod side connection 12 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 54 mm
    D Mounting diameter - cylinder side connection 12 mm
    6000
    Amortizatorius stabdžių mechanizmo AL-KO 366348
    Kodas: 851162
    A Total length 445 mm
    B Rod stroke 165 mm
    C Cylinder diameter 24 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 18 mm
    F Mounting diameter - rod side connection 12 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 24 mm
    D Mounting diameter - cylinder side connection 11 mm
    6000
    Amortizatorius stabdžių mechanizmo AL-KO 372641
    Kodas: 851175
    A Total length 330 mm
    B Rod stroke 90 mm
    C Cylinder diameter 27 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 32 mm
    F Mounting diameter - rod side connection 13 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 30 mm
    D Mounting diameter - cylinder side connection 16 mm
    6294
    Amortizatorius stabdžių mechanizmo KNOTT 87000713
    Kodas: 851176
    D Total length 534 mm
    C Rod stroke 213.5 mm
    A Rod diameter 10 mm
    B Cylinder diameter 28 mm
    Mounting width - rod side connection 10 mm
    E Thread diameter - rod side connection M10
    Mounting width - cylinder side connection 10 mm
    F Thread diameter - cylinder side connection M10
    6448
    Amortizatorius stabdžių mechanizmo AL-KO 87001113
    Kodas: 851178
    D Total length 534 mm
    C Rod stroke 213.5 mm
    A Rod diameter 10 mm
    B Cylinder diameter 28 mm
    Mounting width - rod side connection 10 mm
    E Thread diameter - rod side connection M10
    Mounting width - cylinder side connection 10 mm
    F Thread diameter - cylinder side connection M10
    6593
    Amortizatorius stabdžių mechanizmo AL-KO 359987
    Kodas: 851182
    A Total length 445 mm
    B Rod stroke 165 mm
    C Cylinder diameter 24 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 18 mm
    F Mounting diameter - rod side connection 12 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 24 mm
    D Mounting diameter - cylinder side connection 11 mm
    7111

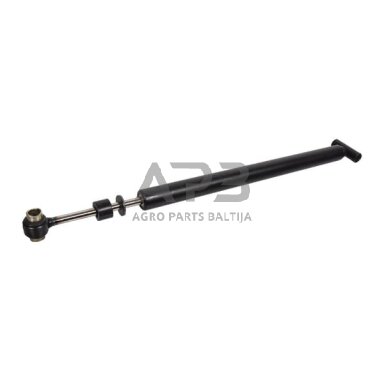

    Amortizatorius stabdžių mechanizmo AL-KO 370589
    Kodas: 851155
    A Total length 505 mm
    B Rod stroke 110 mm
    C Cylinder diameter 28 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 38 mm
    F Mounting diameter - rod side connection 12 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 54 mm
    D Mounting diameter - cylinder side connection 12 mm
    7111
    Amortizatorius stabdžių mechanizmo AL-KO 353936
    Kodas: 851174
    A Total length 345 mm
    B Rod stroke 110 mm
    C Cylinder diameter 27 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 42.5 mm
    F Mounting diameter - rod side connection 13 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 30 mm
    D Mounting diameter - cylinder side connection 16 mm
    7168
    Amortizatorius stabdžių mechanizmo AL-KO 355338
    Kodas: 851164
    A Total length 330 mm
    B Rod stroke 85 mm
    C Cylinder diameter 27 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 33 mm
    F Mounting diameter - rod side connection 12 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 30 mm
    D Mounting diameter - cylinder side connection 16 mm
    7254

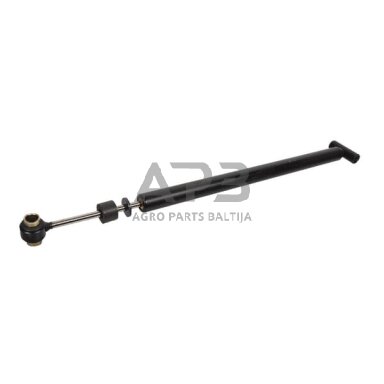

    Amortizatorius stabdžių mechanizmo AL-KO 161S, 370557
    Kodas: 851152
    A Total length 505 mm
    B Rod stroke 125 mm
    C Cylinder diameter 24 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 37.5 mm
    F Mounting diameter - rod side connection 12 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 55 mm
    D Mounting diameter - cylinder side connection 13 mm
    7310
    Amortizatorius stabdžių mechanizmo AL-KO 370556
    Kodas: 851157
    A Total length 505 mm
    B Rod stroke 125 mm
    C Cylinder diameter 24 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 41.5 mm
    F Mounting diameter - rod side connection 12 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 55 mm
    D Mounting diameter - cylinder side connection 13 mm
    7727
    Amortizatorius stabdžių mechanizmo AL-KO 370561
    Kodas: 851184
    A Total length 505 mm
    B Rod stroke 110 mm
    C Cylinder diameter 28 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 38 mm
    F Mounting diameter - rod side connection 12 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 54 mm
    D Mounting diameter - cylinder side connection 12 mm
    7864

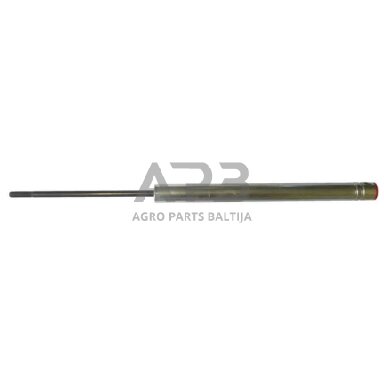

    Amortizatorius stabdžių mechanizmo AH11632
    Kodas: 851154
    Total length 510 mm
    8182
    Amortizatorius stabdžių mechanizmo AL-KO 20777304
    Kodas: 851169
    A Total length 340 mm
    B Rod stroke 135 mm
    C Cylinder diameter 30 mm / 32 mm / 38 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 28 mm
    F Mounting diameter - rod side connection 10 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 28 mm
    D Mounting diameter - cylinder side connection 10 mm
    8717
    Amortizatorius stabdžių mechanizmo AL-KO 20775504
    Kodas: 851153
    A Total length 345 mm
    B Rod stroke 120 mm
    C Cylinder diameter 23 mm30 mm38 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 24 mm
    F Mounting diameter - rod side connection 10 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 24 mm
    D Mounting diameter - cylinder side connection 10 mm
    8852
    Amortizatorius stabdžių mechanizmo KNOTT 87003613
    Kodas: 851170
    D Total length 585 mm
    C Rod stroke 223.5 mm
    A Rod diameter 10 mm
    B Cylinder diameter 28 mm
    Mounting width - rod side connection 10 mm
    E Thread diameter - rod side connection M10
    Mounting width - cylinder side connection 10 mm
    F Thread diameter - cylinder side connection M10
    9096
    Amortizatorius stabdžių mechanizmo AH11635
    Kodas: 851177
    Total length 550 mm
    9719
    Amortizatorius stabdžių mechanizmo AH11636
    Kodas: 851167
    Total length 665 mm
    11916
    Amortizatorius stabdžių mechanizmo AL-KO 20767204
    Kodas: 851163
    A Total length 445 mm
    B Rod stroke 165 mm
    C Cylinder diameter 24 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 32 mm
    F Mounting diameter - rod side connection 12 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 18 mm
    D Mounting diameter - cylinder side connection 12 mm
    13282
    Amortizatorius stabdžių mechanizmo AL-KO 1217090
    Kodas: 851156
    A Total length 410 mm
    B Rod stroke 105 mm
    C Cylinder diameter 27 mm
    Mounting type - rod side connection Bore
    G Mounting width - rod side connection 37 mm
    F Mounting diameter - rod side connection 14 mm
    Mounting type - cylinder side connection Bore
    E Mounting width - cylinder side connection 82 mm
    D Mounting diameter - cylinder side connection 14 mm
    22517
