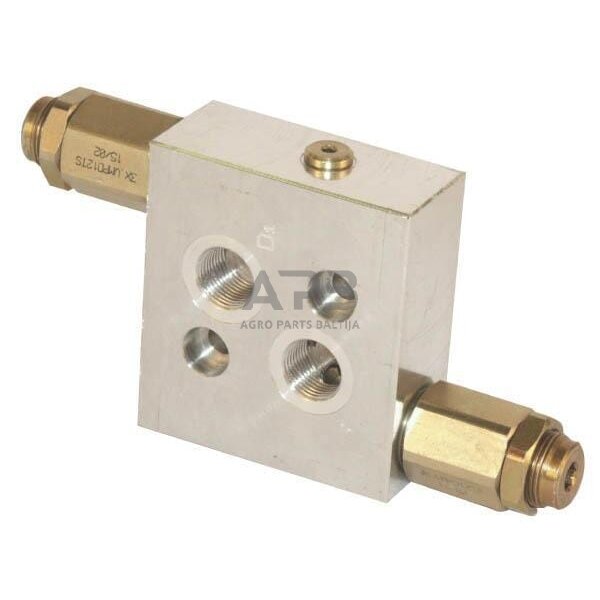

Vožtuvas 20 A 12 OMT A 3/4", VADDF20001
-
Vožtuvas 20 A 12 OMT A 3/4", VADDF20001
Kodas: 834470
Prekiniam ženklui
Walvoil
-
Part number VADDF20001
EAN
UnitEach
Technical infoProtect a hydromotor against occurring pressure peaks as a result of external forces, which can cause an abrupt stop or the direct reversal of the direction of rotation. Intermittent switching time, quick responding.
Max. flow rate110 l/min
Max working pressure210 BAR
Adjustable pressure range5-210 BAR
Adjustment typeSocket screw
Connection typeThread
Connection thread typeBSP
Connection thread diameter3/4 Inch
Designed forOMT SMT
TypeSpring-loaded differential valve

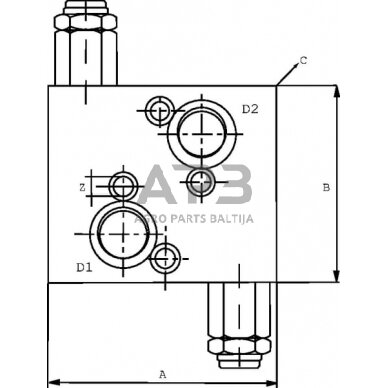

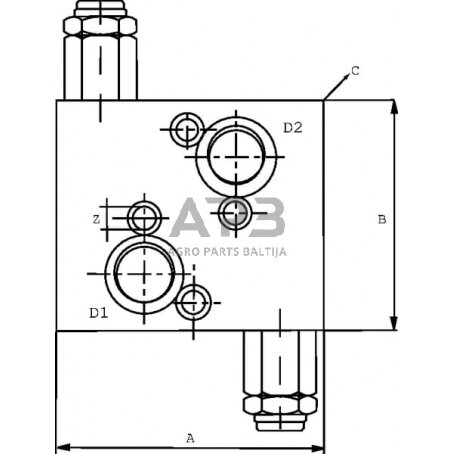

AHousing length120 mm
Housing width39 mm
BHousing height120 mm
Mounting holes diameter10.5 mm
Extra infoSuitable for mounting on; OMT SMT
