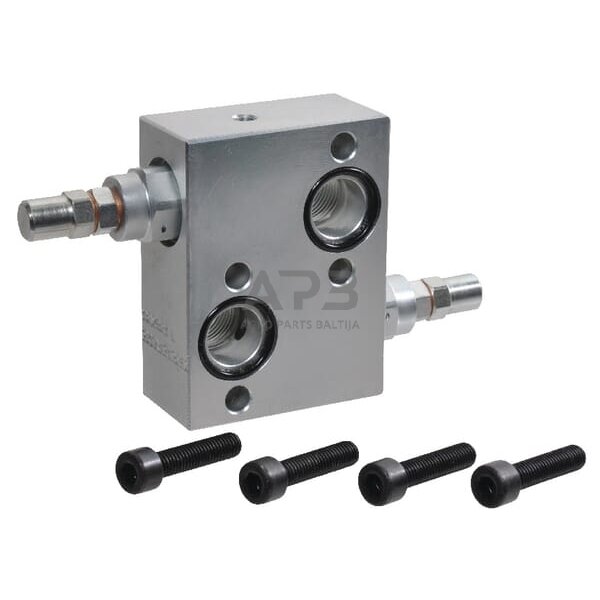

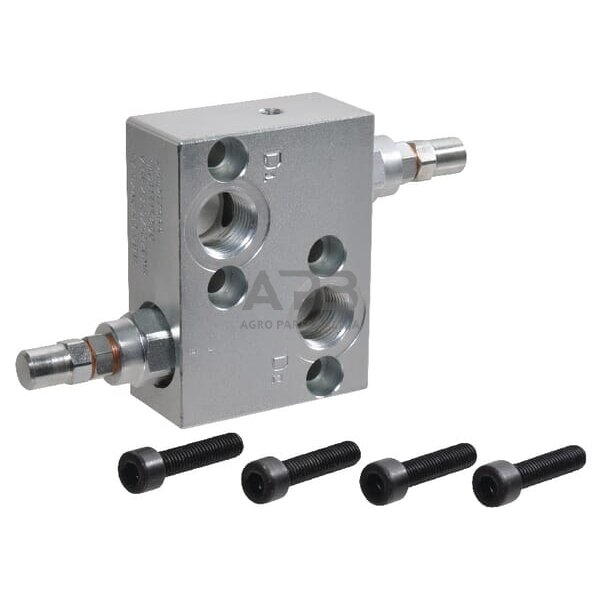

Part number VAIF05001
EAN
UnitEach
Technical infoProtect an orbitrol motor against occurring pressure peaks as a result of external forces, which can cause an abrupt stop or the direct reversal of the direction of rotation.
Max. flow rate35 l/min
Max working pressure210 BAR
Adjustable pressure range50-130 BAR
Adjustment typeSocket screw
Connection typeThread
Connection thread typeInch
Connection thread diameter1/2 Inch
Designed forOMP OMR
Extra infoSuitable for mounting on; OMP OMR OMPX OMRX
