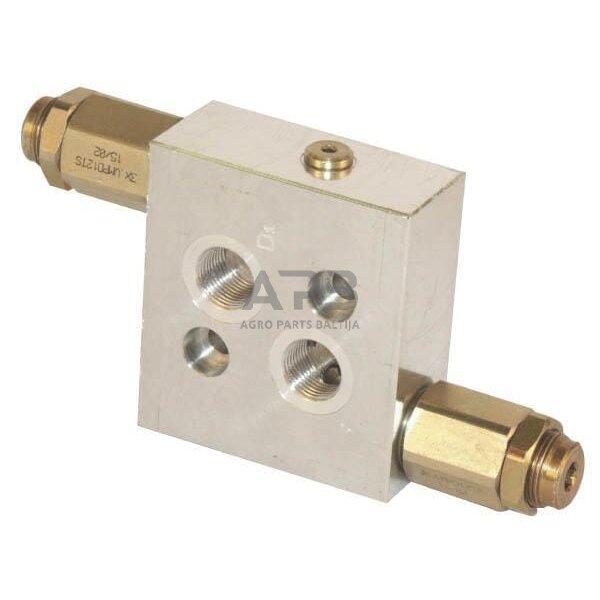

Part number VADDF10001
EAN
UnitEach
Technical infoProtect a hydromotor against occurring pressure peaks as a result of external forces, which can cause an abrupt stop or the direct reversal of the direction of rotation. Intermittent switching time, quick responding.
Max. flow rate50 l/min
Max working pressure210 BAR
Adjustable pressure range5-210 BAR
Adjustment typeSocket screw
Connection typeThread
Connection thread typeBSP
Connection thread diameter1/2 Inch
Designed forOMS SMS

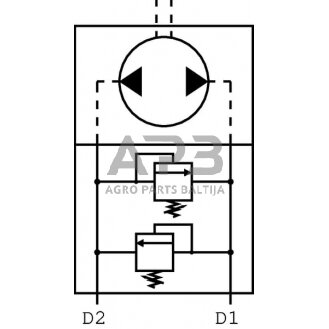

TypeSpring-loaded differential valve

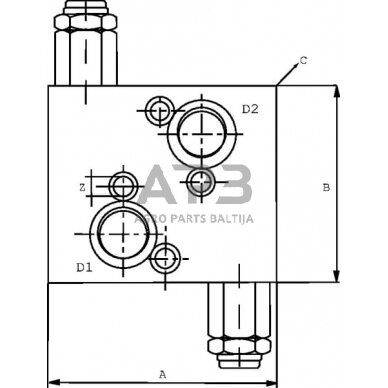

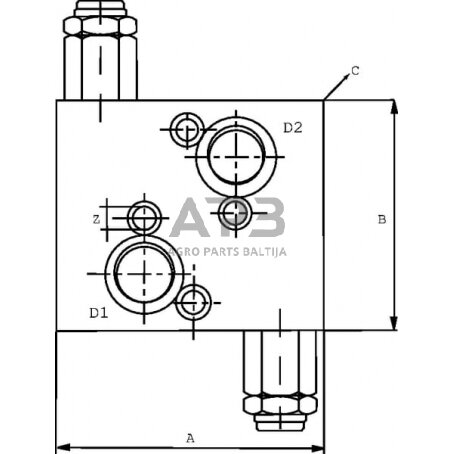

AHousing length90 mm
Housing width39 mm
BHousing height100 mm
Mounting holes diameter10.5 mm
Extra infoSuitable for mounting on; OMS SMS
