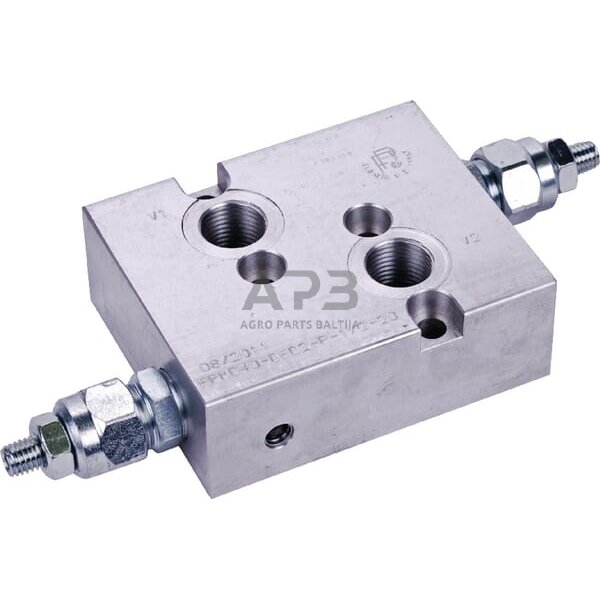

Vožtuvas - OMP/OMR 1/2 BSP, FPMD40DF001
-
Vožtuvas - OMP/OMR 1/2 BSP, FPMD40DF001
Kodas: 834463
Prekiniam ženklui
FluidPress
-
Part number FPMD40DF001
EAN
UnitEach
Technical infoProtect an orbitrol motor against occurring pressure peaks as a result of external forces, which can cause an abrupt stop or the direct reversal of the direction of rotation.
Max. flow rate35 l/min
Max working pressure250 BAR
Adjustable pressure range50-220 BAR
Standard pressure setting30 BAR
Connection typeThread
Connection thread typeBSP
Connection thread diameter1/2 Inch
Housing materialAluminium
Designed forOMP OMR
TypeSpring-loaded differential valve

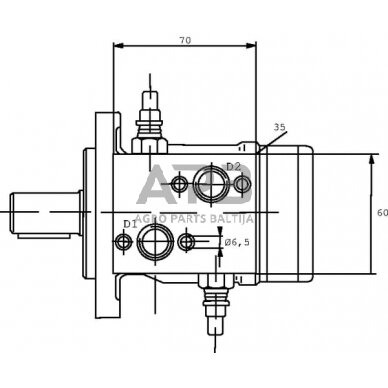

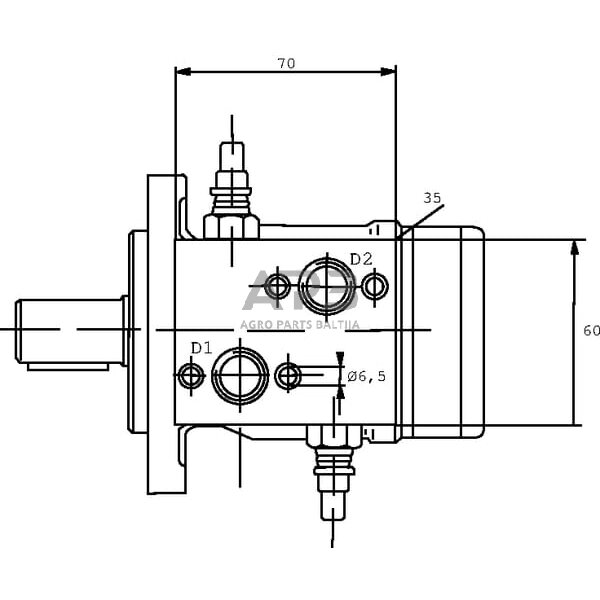

Housing length100 mm
Housing width35 mm
Housing height70 mm
Extra infoSuitable for mounting on; OMP OMR OMPX OMRX
