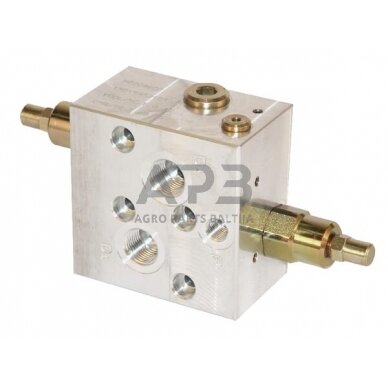

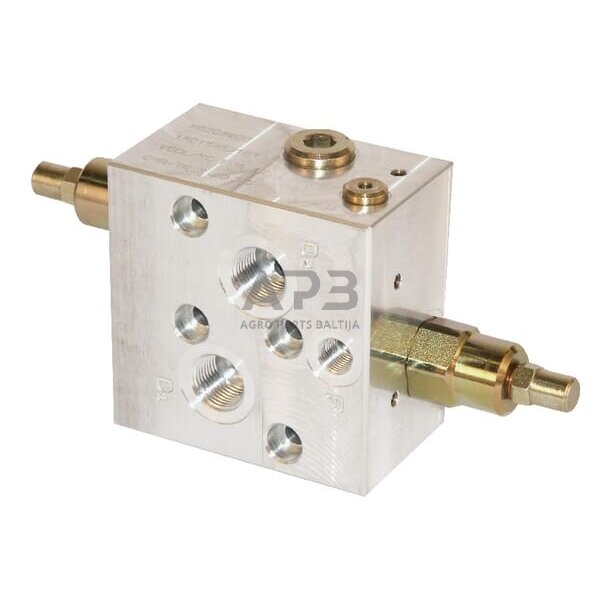

Vožtuvas OMS FPO 65 DF D3 1/2 U 35, FPO65DFD312U35
Vožtuvas OMS FPO 65 DF D3 1/2 U 35, FPO65DFD312U35
Kodas: 834460Kaina 17532€ su PVMPrekiniam ženkluiFluidPress- Part number FPO65DFD312U35
EAN
UnitEach

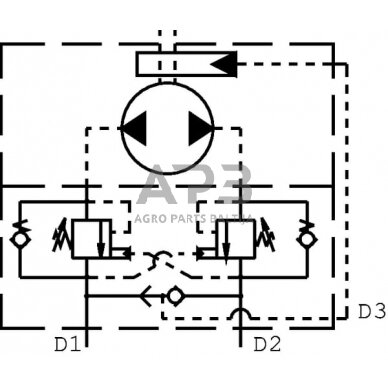

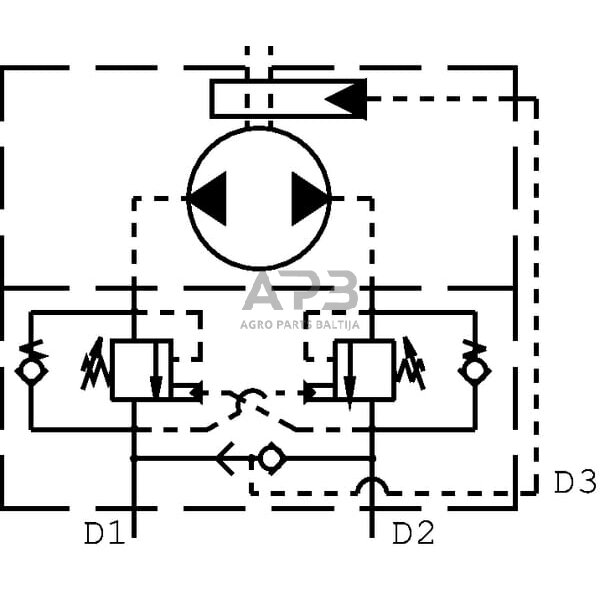

Technical infoDual Counter balance valve with shuttle valve. The purpose of the shuttle valve is the operation of a (negative) multiple disc brake. Operation of this valve is influenced by the pressure in the return port (port D).
MaterialAluminium
Connection thread diameter1/2 Inch
Connection type - male/femaleFemale
Connection typeThread
Max working pressure350 BAR
Total height60 mm
Total length210 mm
