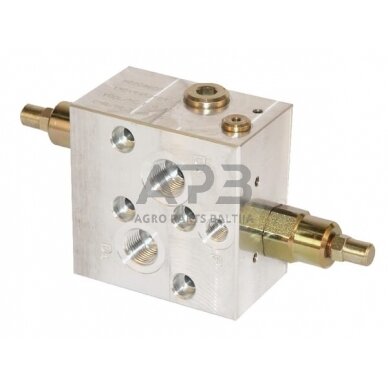

Part number FPO50DFD212U35
EAN
UnitEach

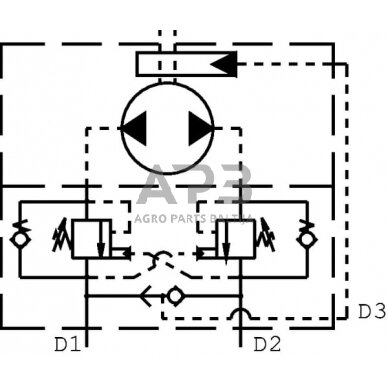

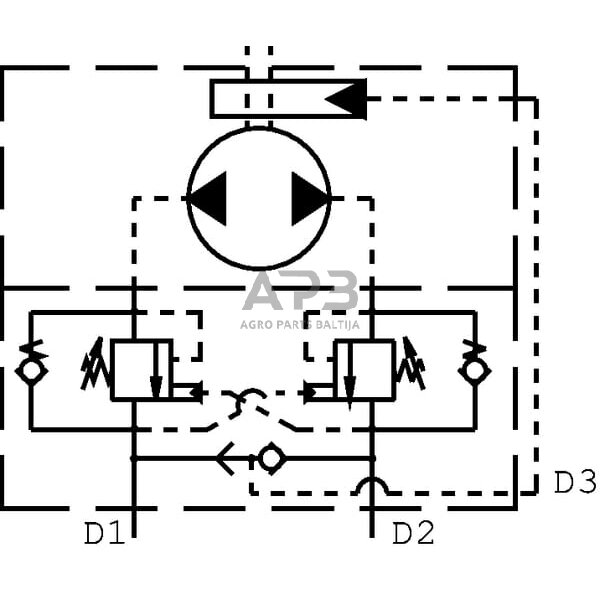

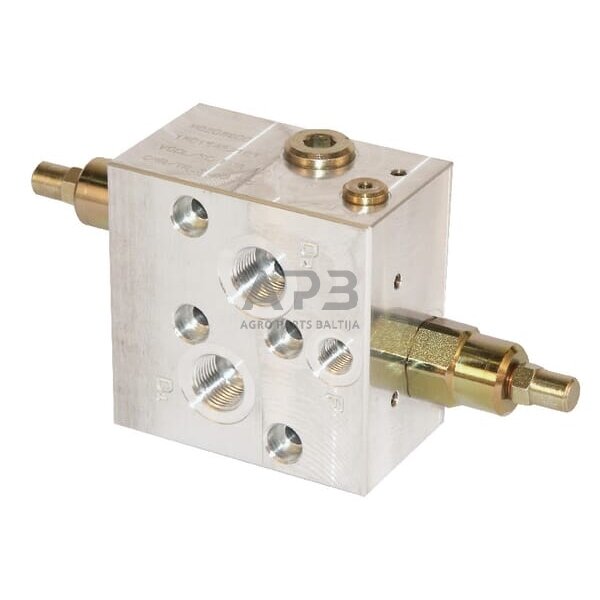

Technical infoDual Counter balance valve with shuttle valve. The purpose of the shuttle valve is the operation of a (negative) multiple disc brake. Operation of this valve is influenced by the pressure in the return port (port D).
MaterialAluminium
Connection thread diameter1/2 Inch
Connection type - male/femaleFemale
Connection typeThread
Max. flow rate25 l/min
Max working pressure350 BAR

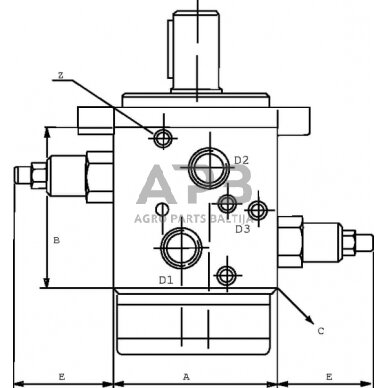

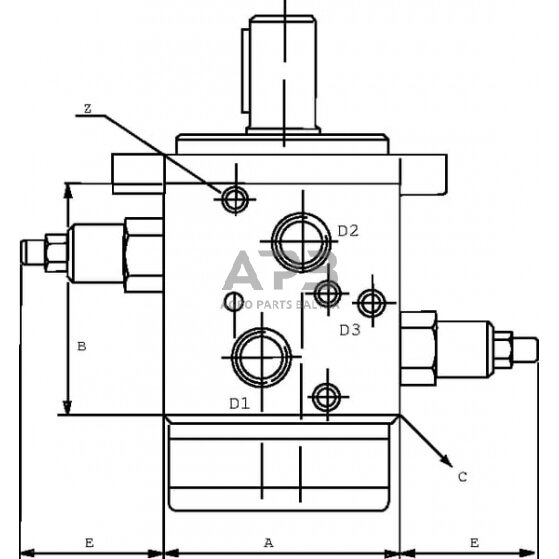

Total height59 mm
Total length92 mm
Total width88 mm
