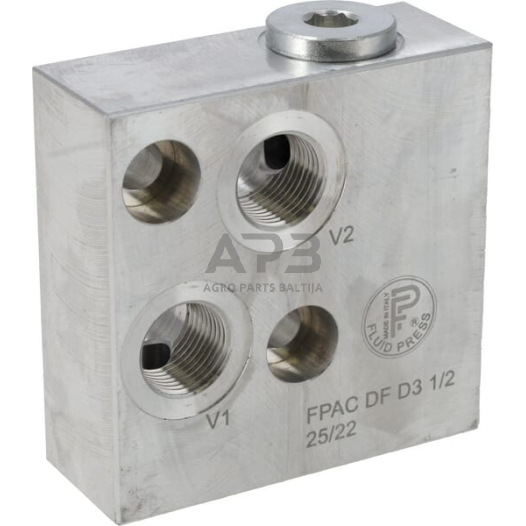

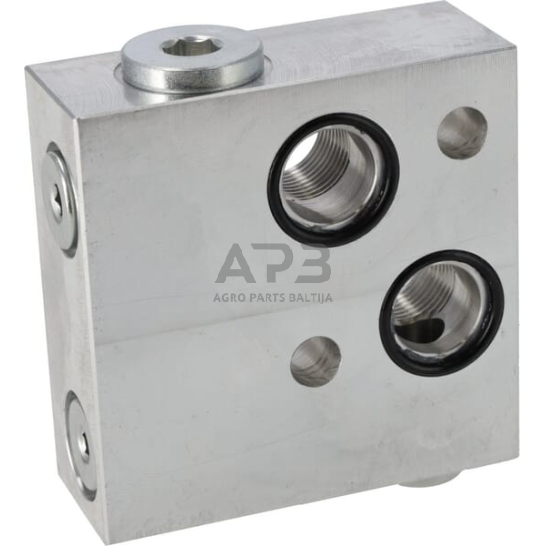

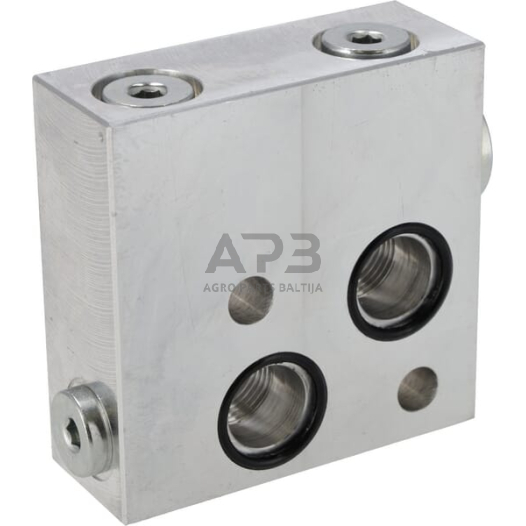

Vožtuvas OMS FPAC DF D3 1/2 , FPACDFD312
-
Vožtuvas OMS FPAC DF D3 1/2 , FPACDFD312
Kodas: 834467
Prekiniam ženklui
FluidPress
-
Part number FPACDFD312
EAN
UnitEach

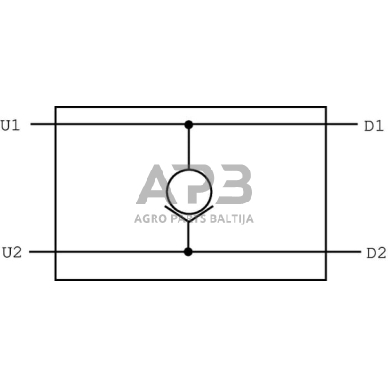

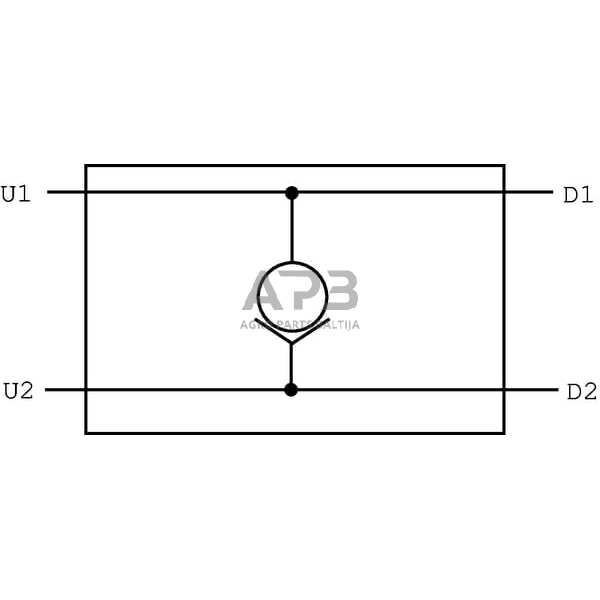

Details: The flow direction is from D1 to D2 and D2 to D1 is closed
Technical infoWhen the actuator is braking, the check valve allow for anticvitation on delivery side.
Intended mediumHydraulic oil
TypeSingle
Max working pressure250 BAR
MaterialSteel
Surface treatmentAluminium coated
Opening pressure0.5 BAR
Nominal flow rate60 NI/min
Number of connections2
Connections thread diameter1/2 Inch
Total length70 mm
Total width70 mm
Total height34 mm
