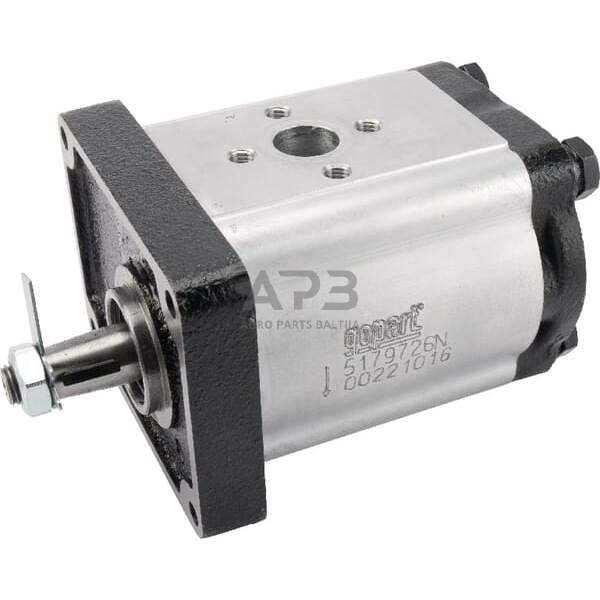

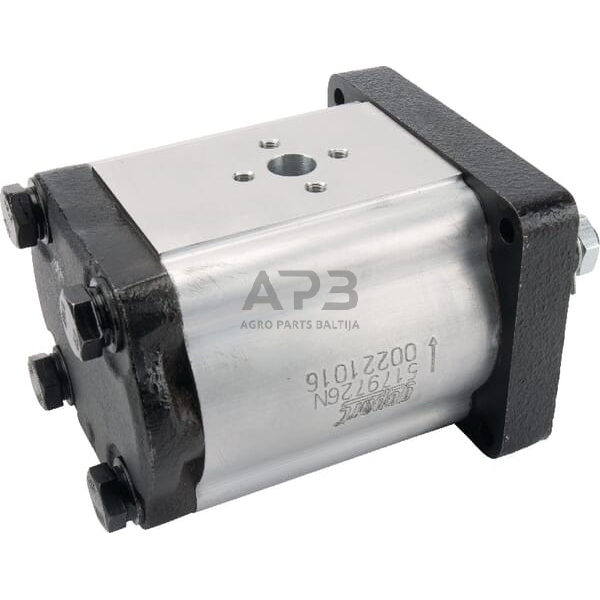

Hidraulinis siurblys gopart 5179726N
Hidraulinis siurblys gopart 5179726N
Kodas: 846490Kaina 131.76 € su PVMHousing length 134.5 mm
Connection port to flange distance 59 mm
Pressure port bolts circle diameter 30 mm
Suction port bolts circle diameter 40 mmPrekiniam ženkluigopart-
Part number 5179726N
EAN
Unit Each
Flange type norm European
Number of mounting holes 4
Shaft type Tapered
Shaft thread diameter M12
Shaft thread pitch 1.50 mm
Shaft cone size code 1:8
Displacement 19 cm³/rev
Sealing type Standard
Max. continous working pressure 170 BAR
Max intermittend working pressure 210 BAR
Max pressure peak 230 BAR
Max rotation speed 2750 r/min
Min rotation speed 650 r/min

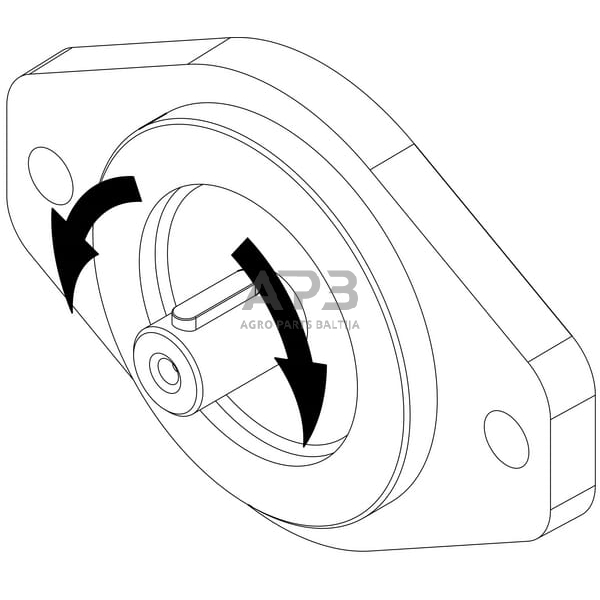

Prefered rotation direction Clockwise (CW)
Main port size code 2G12
Pressure port size code 1GB12
Port position Side
Housing length 134.5 mm
Connection port to flange distance 59 mm
Pressure port bolts circle diameter 30 mm
Suction port bolts circle diameter 40 mm Susijusios prekės
