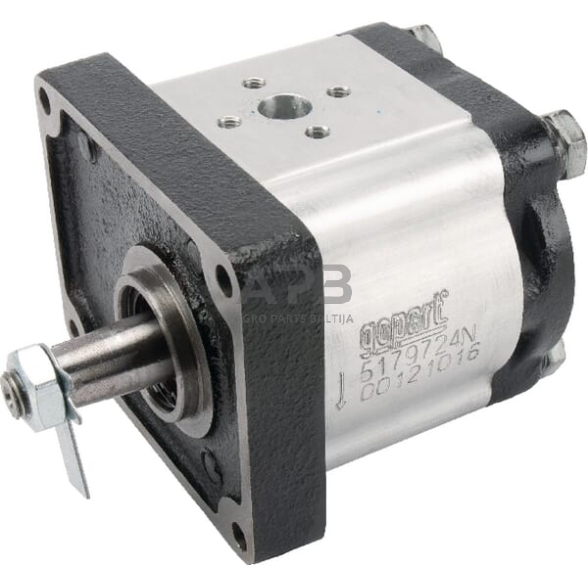

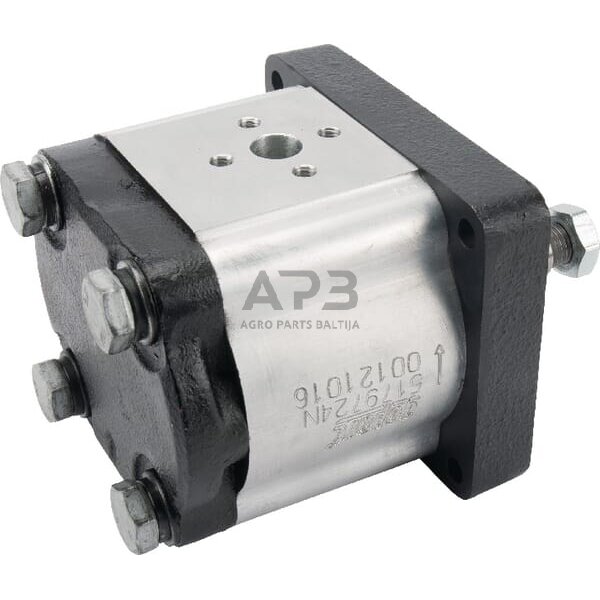

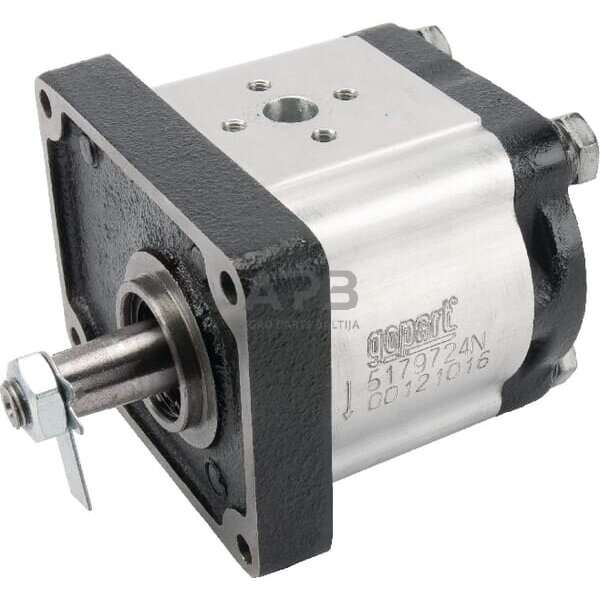

Hidraulinis siurblys gopart 5179724N
Hidraulinis siurblys gopart 5179724N
Kodas: 846545Kaina 116.23 € su PVMA Housing length 102 mm
B Connection port to flange distance 42.5 mm
E Pressure port bolts circle diameter 30 mm
D Suction port bolts circle diameter 30 mmPrekiniam ženkluigopart-
Part number 5179724N
EAN8716106853229
Unit Each
Flange type norm European
Number of mounting holes 4
Shaft type Tapered
Shaft thread diameter M12
Shaft thread pitch 1.50 mm
Shaft cone size code 1:8
Displacement 8.2 cm³/rev
Sealing type Standard
Max. continous working pressure 250 BAR
Max intermittend working pressure 280 BAR
Max pressure peak 300 BAR
Max rotation speed 3000 r/min
Min rotation speed 650 r/min

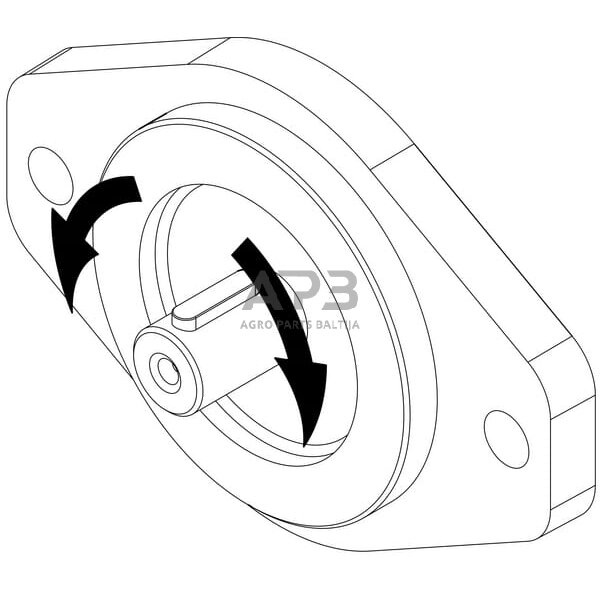

Prefered rotation direction Clockwise (CW)
Main port size code 1G08
Pressure port size code 1G08
Port position Side

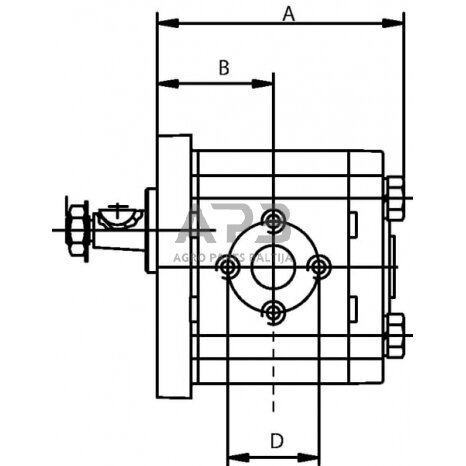

A Housing length 102 mm
B Connection port to flange distance 42.5 mm
E Pressure port bolts circle diameter 30 mm
D Suction port bolts circle diameter 30 mm Susijusios prekės
Hidraulinis siurblys gopart 5179722NKodas: 846529A Housing length 107 mm
B Connection port to flange distance 48 mm
E Pressure port bolts circle diameter 30 mm
D Suction port bolts circle diameter 40 mm124.73 € su PVM

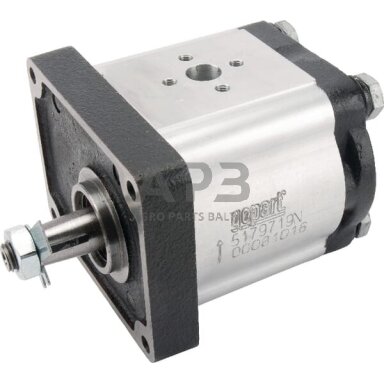

Hidraulinis siurblys gopart 5179719NKodas: 846517A Housing length 113.4 mm
