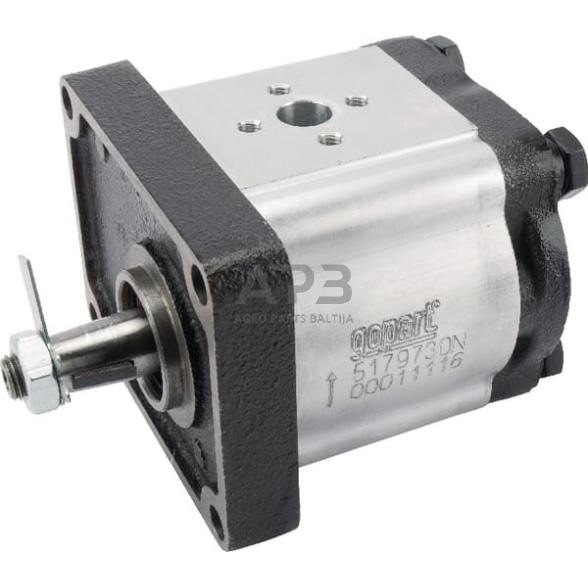

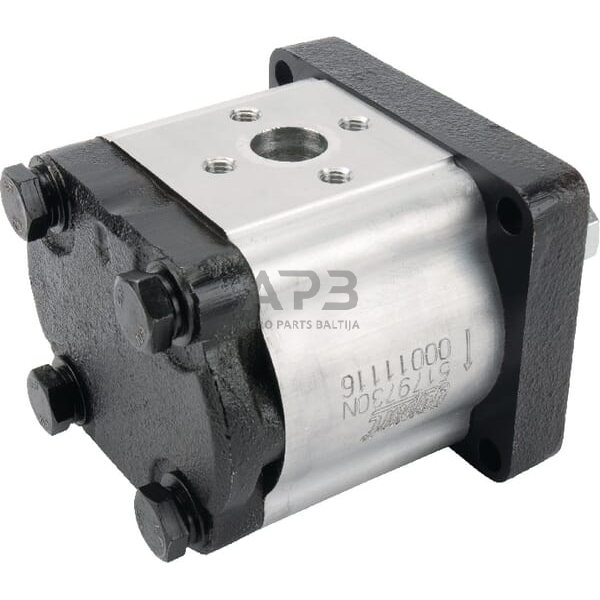

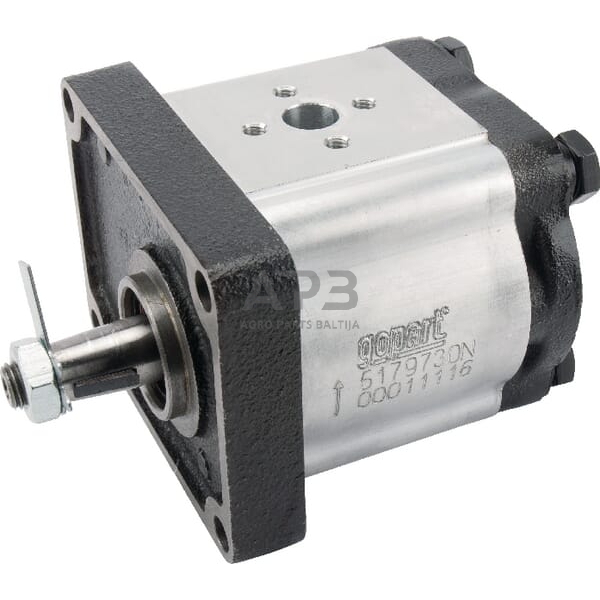

Hidraulinis siurblys gopart 5179730N
Hidraulinis siurblys gopart 5179730N
Kodas: 846472Kaina 120.54 € su PVMA Housing length 107.7 mm
B Connection port to flange distance 48.5 mm
E Pressure port bolts circle diameter 30 mm
D Suction port bolts circle diameter 40 mmPrekiniam ženkluigopart-
Part number 5179730N
EAN8716106853083
Unit Each
Flange type norm European
Number of mounting holes 4
Shaft type Tapered
Shaft thread diameter M12
Shaft thread pitch 1.50 mm
Shaft cone size code 1:8
Displacement 11.3 cm³/rev
Sealing type Standard
Max. continous working pressure 250 BAR
Max intermittend working pressure 280 BAR
Max pressure peak 300 BAR
Max rotation speed 3000 r/min
Min rotation speed 650 r/min

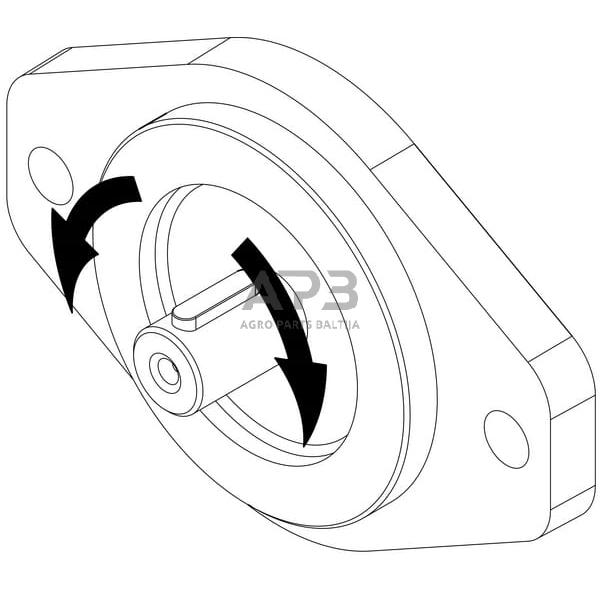

Prefered rotation direction Counter-clockwise (CCW)
Main port size code 2G12
Pressure port size code 1G08
Port position Side

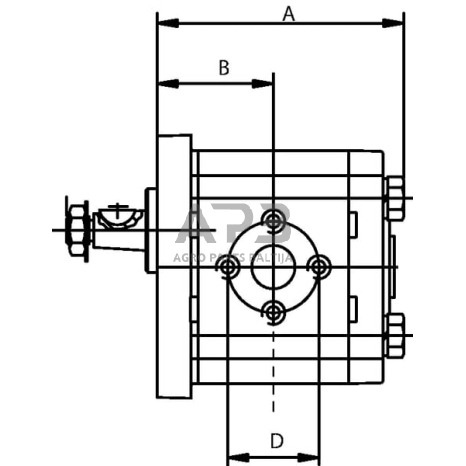

A Housing length 107.7 mm
B Connection port to flange distance 48.5 mm
E Pressure port bolts circle diameter 30 mm
D Suction port bolts circle diameter 40 mm Susijusios prekės
Hidraulinis siurblys gopart 5179719NKodas: 846517A Housing length 113.4 mm
B Connection port to flange distance 55.4 mm
E Pressure port bolts circle diameter 30 mm
D Suction port bolts circle diameter 30 mm121.05 € su PVM
Hidraulinis siurblys gopart 5179714NKodas: 846510A Housing length 122.9 mm
B Connection port to flange distance 59 mm
E Pressure port bolts circle diameter 30 mm
D Suction port bolts circle diameter 30 mm126.49 € su PVM
Hidraulinis siurblys gopart 5179732NKodas: 846502A Housing length 102 mm
B Connection port to flange distance 45 mm
E Pressure port bolts circle diameter 30 mm
D Suction port bolts circle diameter 30 mm117.13 € su PVM

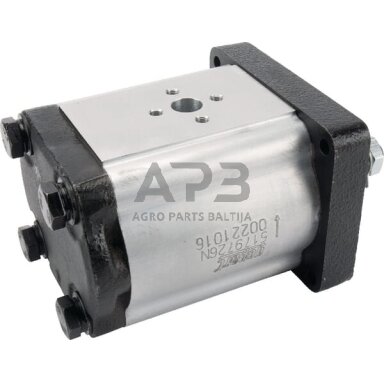

Hidraulinis siurblys gopart 5179726NKodas: 846490Housing length 134.5 mm
