Hidraulinis siurblys gopart 3539857M91S
Hidraulinis siurblys gopart 3539857M91S
Kodas: 846521Kaina 153.15 € su PVMHousing length 100 mm
Connection port to flange distance 48.5 mm
Pressure port bolts circle diameter 30 mm
Suction port bolts circle diameter 40 mmPrekiniam ženkluigopart-
Part number 3539857M91S
EAN8719493095500
Unit Each
Flange type norm European
Number of mounting holes 4
Shaft type Tapered
Shaft thread diameter M12
Shaft thread pitch 1.50 mm
Shaft cone size code 1:8
Displacement 11.3 cm³/rev
Sealing type Standard
Max. continous working pressure 250 BAR
Max intermittend working pressure 280 BAR
Max pressure peak 300 BAR
Max rotation speed 3000 r/min
Min rotation speed 650 r/min

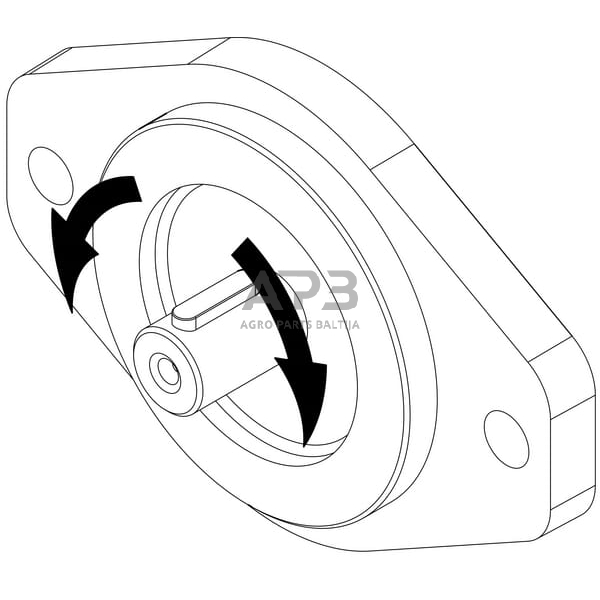

Prefered rotation direction Clockwise (CW)
Main port size code 2G12
Pressure port size code 1G08
Port position Side
Housing length 100 mm
Connection port to flange distance 48.5 mm
Pressure port bolts circle diameter 30 mm
Suction port bolts circle diameter 40 mm
Extra info The suction and delivery ports have the same dimensions. For a pump with a larger suction port, use article 3539857M91N. Susijusios prekės
