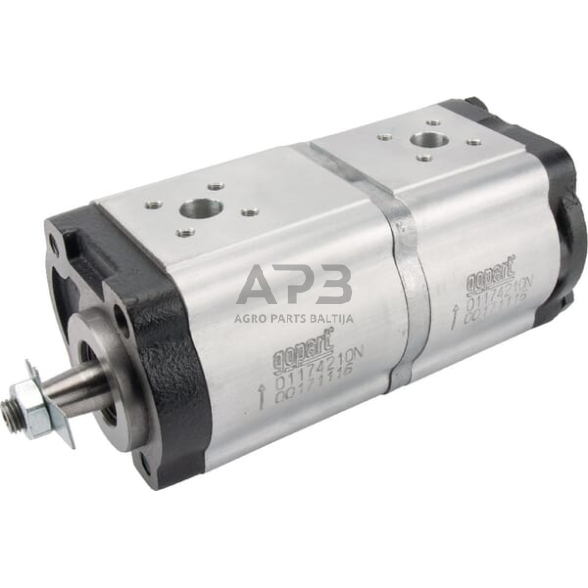

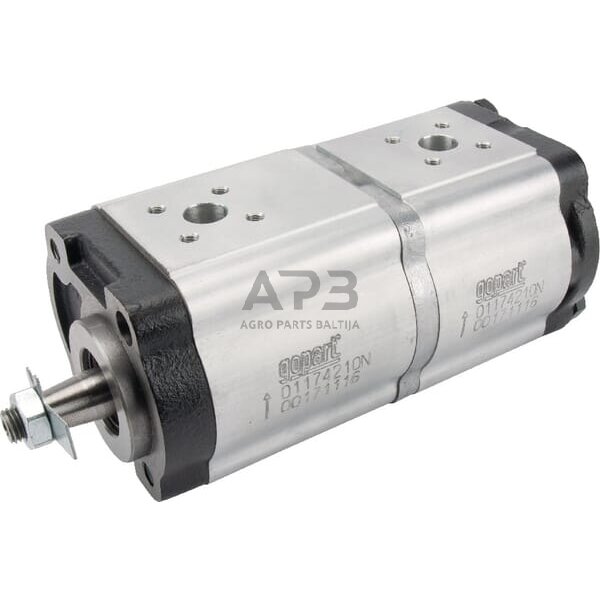

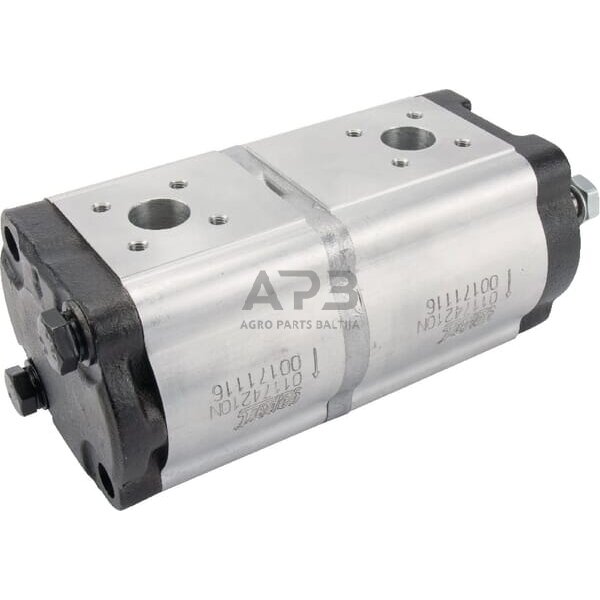

Hidraulinis siurblys gopart 01174210N
Hidraulinis siurblys gopart 01174210N

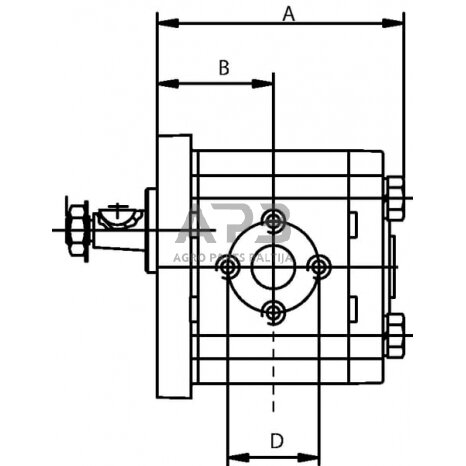

Kodas: 846539Kaina 225.58 € su PVMA Housing length 196.3 mm
B Connection port to flange distance 45 mm
E Pressure port bolts circle diameter 35 mm
D Suction port bolts circle diameter 40 mmPrekiniam ženkluigopart-
Part number 01174210N
EAN8716106853069
Unit Each
Flange type norm German
Number of mounting holes 4
Shaft type Tapered
Shaft thread diameter M12
Shaft thread pitch 1.50 mm
Shaft cone size code 1:5
Displacement 19 cm³/rev
Sealing type Standard
Max. continous working pressure 190 BAR
Max intermittend working pressure 210 BAR
Max pressure peak 230 BAR
Max rotation speed 3000 r/min
Min rotation speed 650 r/min

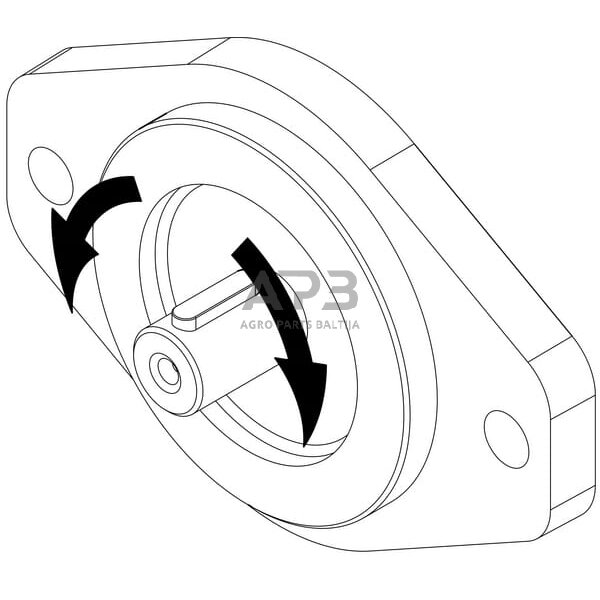

Prefered rotation direction Counter-clockwise (CCW)
Main port size code 2GB12
Pressure port size code 1GB12
Port position Side
A Housing length 196.3 mm
B Connection port to flange distance 45 mm
E Pressure port bolts circle diameter 35 mm
D Suction port bolts circle diameter 40 mm Susijusios prekės
