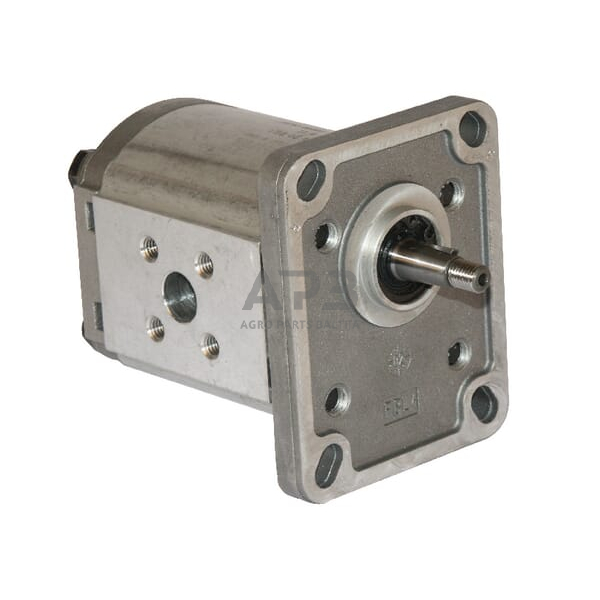

Part number PLP106S081E1
EAN
Unit Each
Long description Polaris group 1
Details Various connection options Outer housing pivoted
Application range Mobile applications Industrial applications
Properties Consists of 3 parts Electrohydraulic ventilator drive Customer-specific design possible
Benefits Wide range of applications Can be used under tough environmental conditions

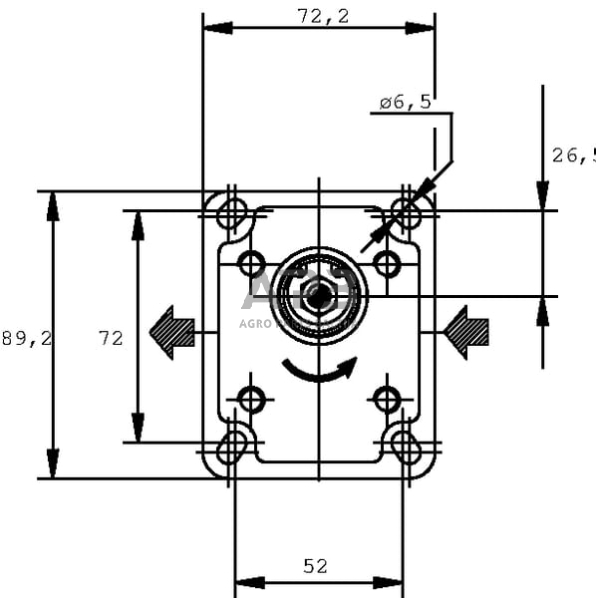

Flange type norm European
Flange code E1
Number of mounting holes 4
Shaft type Tapered
Shaft cone size code 1:8

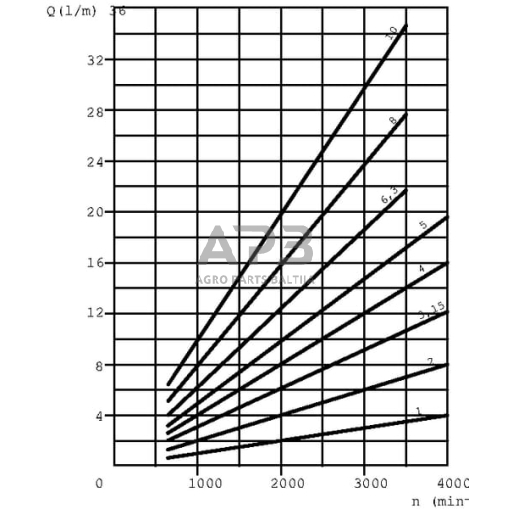

Displacement 6.67 cm³/rev
Sealing type Standard

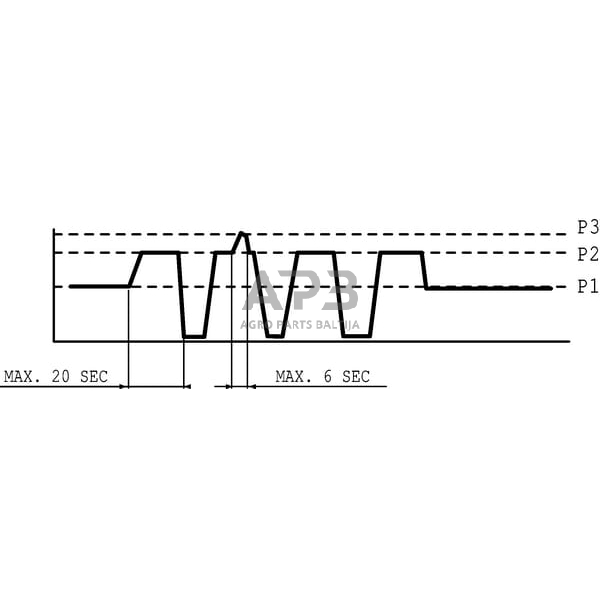

Max. continous working pressure 230 BAR
Max intermittend working pressure 250 BAR
Max pressure peak 260 BAR
Max rotation speed 3500 r/min

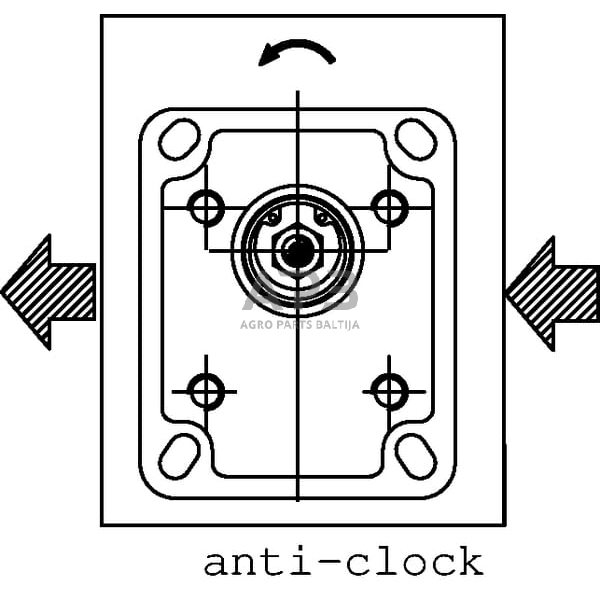

Prefered rotation direction Counter-clockwise (CCW)
Port position Side
Housing length 83 mm
Housing material Aluminium
Flange and back cover material Aluminium

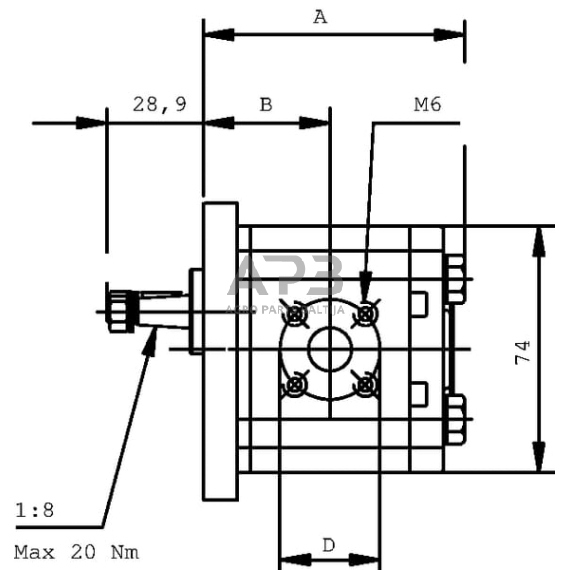

B Connection port to flange distance 40 mm

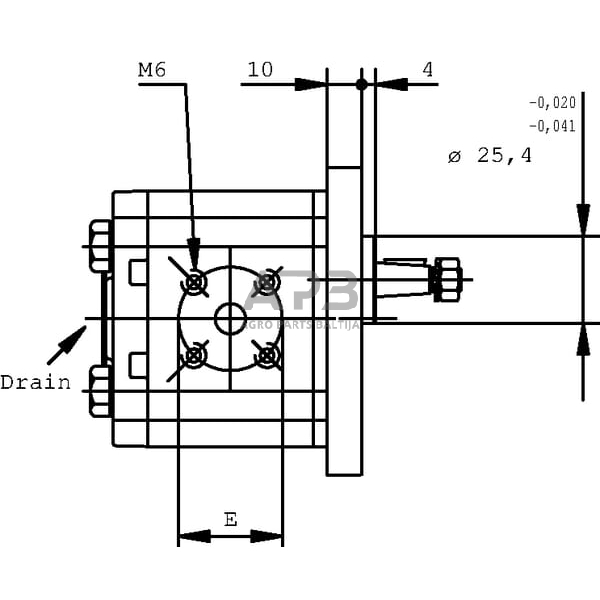

E Pressure port bolts circle diameter 30 mm
D Suction port bolts circle diameter 30 mm
Mounting diameter 25.4 mm
