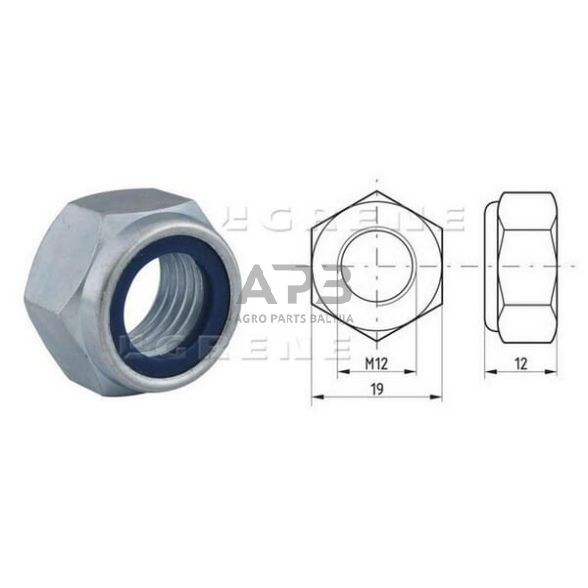

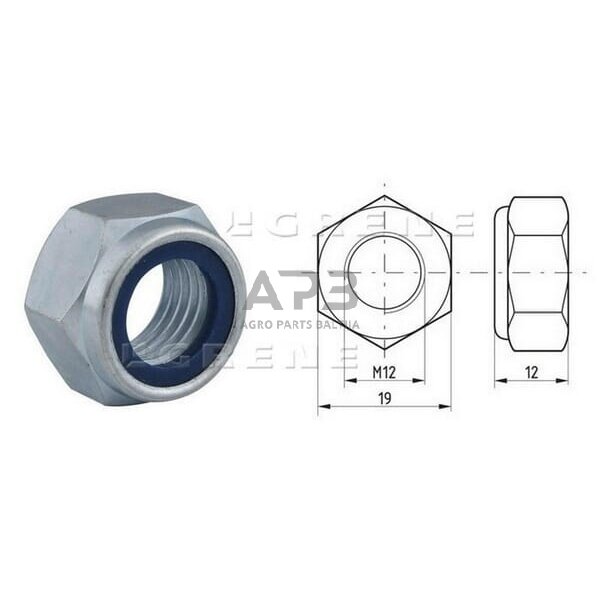

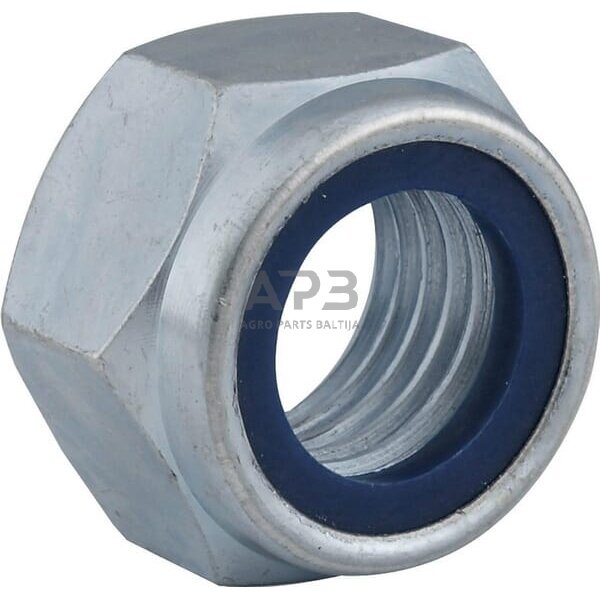

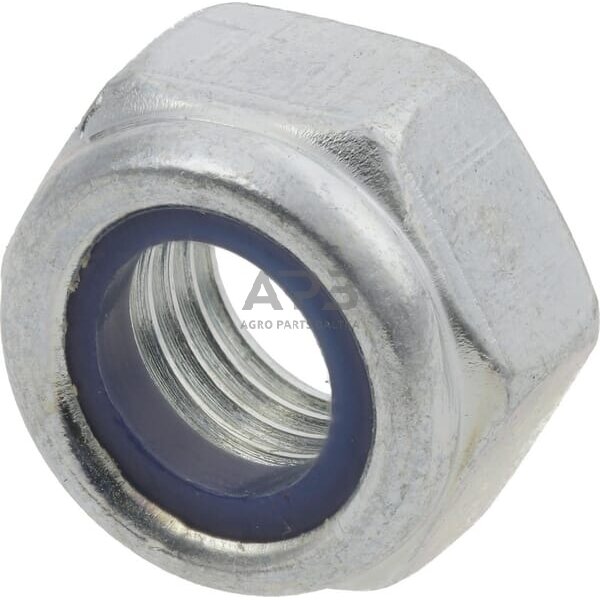

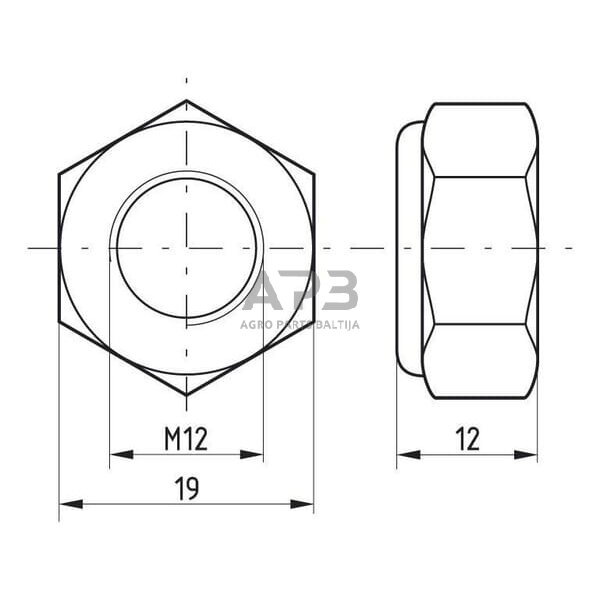

Veržlė M12x1.75 DIN985 Class 8, 98512
Veržlė M12x1.75 DIN985 Class 8, 98512
Kodas: 850566Kaina 0.24 € su PVMThread diameter M12
Pitch of thread 1.75 mm
s Wrench/Spanner size 19 mm18 mm
m Height 8 mm
Total height 12 mmPrekiniam ženkluiUniversalus-
Part number 98512
EAN8716106178902
Unit Each
Qty. Rounding 100
Long description Self-locking hexagon nut (locknut) with a nylon ring to prevent loosening due vibration etc. ISO 10511 supersedes DIN 985; spanner sizes 16, 18 and 21 are now designed for M10, M12 and M14 respectively.
Measurements type Metric
Thread diameter M12
Pitch of thread 1.75 mm
s Wrench/Spanner size 19 mm18 mm
m Height 8 mm
Total height 12 mm
Material Steel
Surface treatment Zinc-plated
Quality 8.8
DIN Standard 985
ISO standard 10511
Thread type Metric
Content in sale unit 100 pcs Susijusios prekės
Veržlė DIN980 M10x1.50, Class 8, 98010Kodas: 850615D Thread diameter M10
Pitch of thread 1.50 mm
m Height 6 mm
Total height 9 mm
0.44 € su PVM
Veržlė DIN980 M12x1.75, Class 8, 98012Kodas: 850607D Thread diameter M12
Pitch of thread 1.75 mm
m Height 7.2 mm
Total height 11 mm
0.53 € su PVM
Veržlė M14x2.00 DIN985, 8, 98514Kodas: 850583Thread diameter M14
Pitch of thread 2.00 mm
m Height 9.5 mm
Total height 14 mm
0.27 € su PVM
Veržlė DIN980 M8x1.25 Class 8, 9808Kodas: 850564D Thread diameter M8
Pitch of thread 1.25 mm
s Wrench/Spanner size 13 mm
m Height 6 mm
Total height 13 mm
0.19 € su PVM
