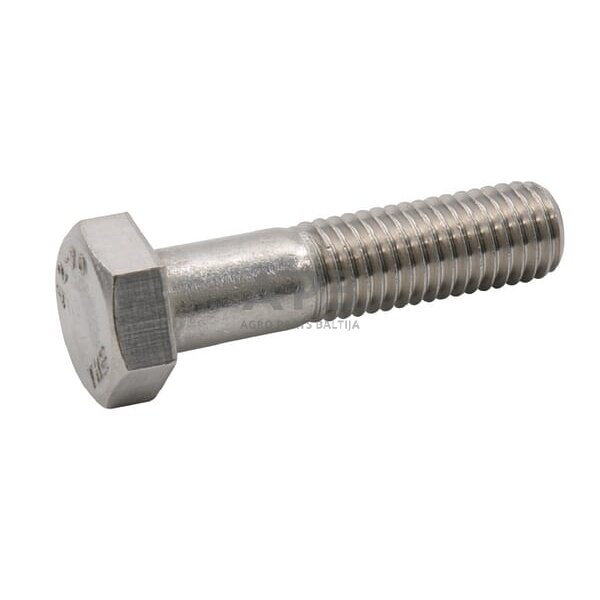

Varžtas DIN931 M8x35, 8.8, 931835
Varžtas DIN931 M8x35, 8.8, 931835
Kodas: 850567Kaina 0.29 € su PVMD Thread diameter M8
Thread pitch 1.25 mm
l Length 35 mm
b Thread length 22 mm
k Head height 5.3 mmPrekiniam ženkluiUniversalus-
Part number 931835
EAN8716106619238
Unit Each
Qty. Rounding 100
Long description Hexagon shoulder bolt, partially threaded, length is measured below the head. ISO 4014 supersedes DIN 931: according to ISO spanner sizes 16, 18, 21 and 34 are for M10, M12, M14 and M22 respectively.
Measurements type Metric

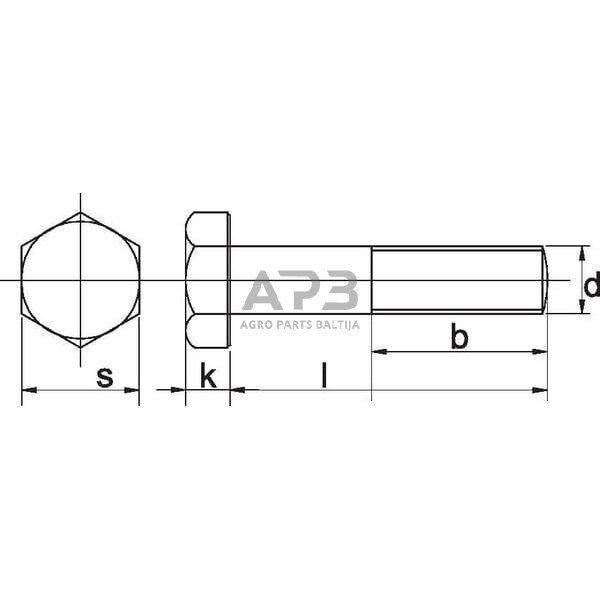

D Thread diameter M8
Thread pitch 1.25 mm
l Length 35 mm
b Thread length 22 mm
Head shape Hexagon
Thread type Metric
s Wrench/Spanner size 13.0 mm
k Head height 5.3 mm
Quality 8.8
Surface treatment Zinc-plated
Material Steel
DIN Standard 931
ISO standard 4014
Weight per 100 pcs 1.82 kg
Content in sale unit 100 pcs Susijusios prekės
