Part number HSS3106B
EAN8719493154597
Unit Box

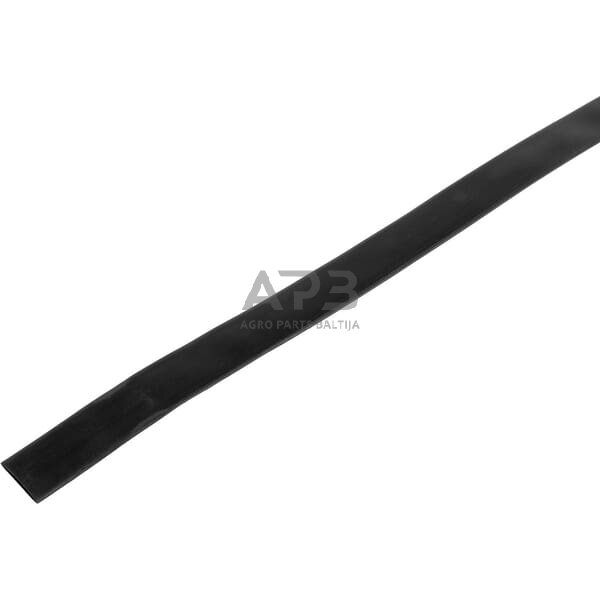

Long description The single-walled heat shrink sleeves are flexible, flame-retardant, made of polyolefin. The heat shrink sleeves are low fume, abrasion resistant and dioxin free in case of burning. Moreover, the heat-shrink sleeves have excellent electrical and physical Properties , including excellent acid and corrosion resistance. Show more
Pros It is suitable as insulation in automotive electronics, cable lugs, terminals & connectors, small electrical parts, lead wires of motors and transformers, etc. This product is UL listed
Product Details Material : Polyolefin Shrink ratio: 3:1 Operating temperature: -55 ~ 125°C Minimum shrinkage temperature: 70°C Full shrinkage temperature: 120°C
Hose inside diameter 12 mm
Crimping diameter range 4.00-12.00 mm
Length 6 m
Colour outside Black
Min working temperature 70 °C
Max working temperature 120 °C
Packing type Box
Norm REACH RoHS UL1581 VW-1
Material inside Polyolefin
Material outside Polyolefin
Shrinkage factor 3:1
Packing type Box
