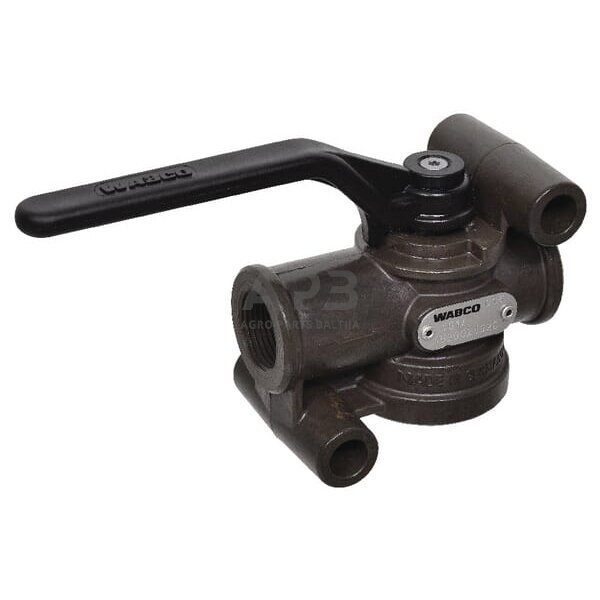

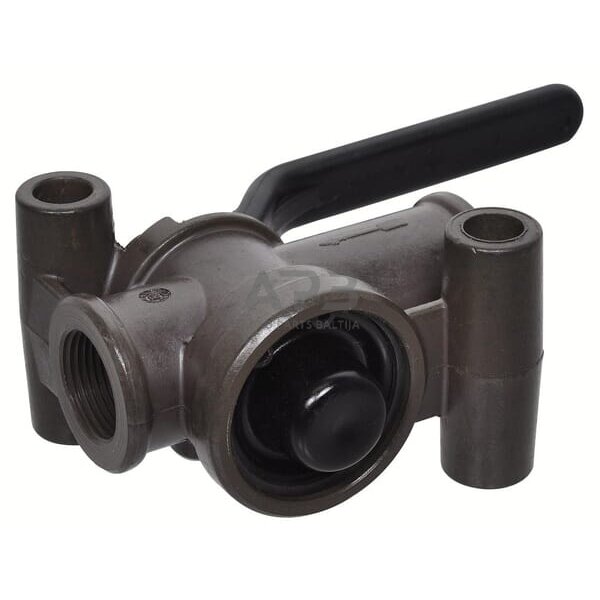

Oro uždarymo ventilis Wabco 4520021320
Oro uždarymo ventilis Wabco 4520021320
Kodas: 851851Kaina 75.73 € su PVMMax working pressure 10 BAR
Connection thread diameter M22
Connection thread pitch 1.50 mm
Connection 2, thread diameter M22
Connection 2, thread pitch 1.50 mmPrekiniam ženkluiWabco-
Part number 4520021320
EAN4057875206668
Unit Each
Application range Diverse area of application in compressed air systems Shutting off compressed air lines
Properties Max. operating pressure: 10 bar Lever actuation: 90° Two connections with internal thread M22 x 1.5
Long description Application : Diverse area of application in compressed air systems Shutting off compressed air lines Properties: Max. operating pressure: 10 bar Lever actuation: 90° Two connections with internal thread M22 x 1.5
Number of positions 2
Number of ports 2
Type Manual valve
Max working pressure 10 BAR
Connection type Thread
Connection thread diameter M22
Connection thread pitch 1.50 mm
Connection 2, thread diameter M22
Connection 2, thread pitch 1.50 mm
Min medium temperature -40 °C
Max medium temperature 80 °C Susijusios prekės
