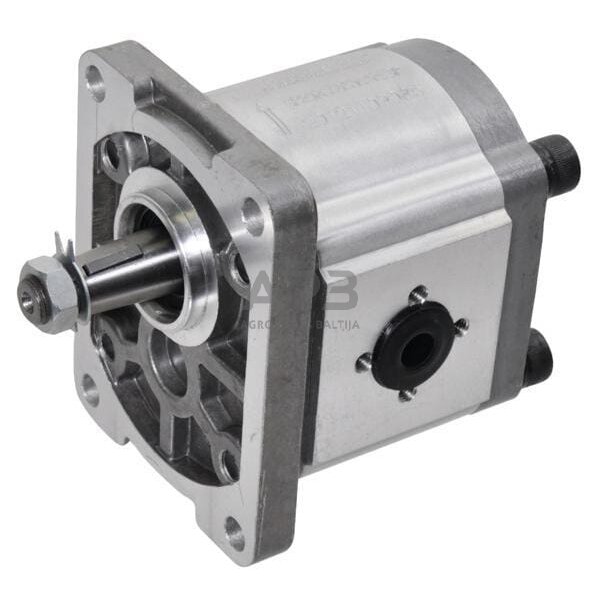

Part number GP208D3030C18EGP
EAN8716106140183
Unit Each
Pros Suitable for heavy-duty conditions Wide range of applications Various connection options

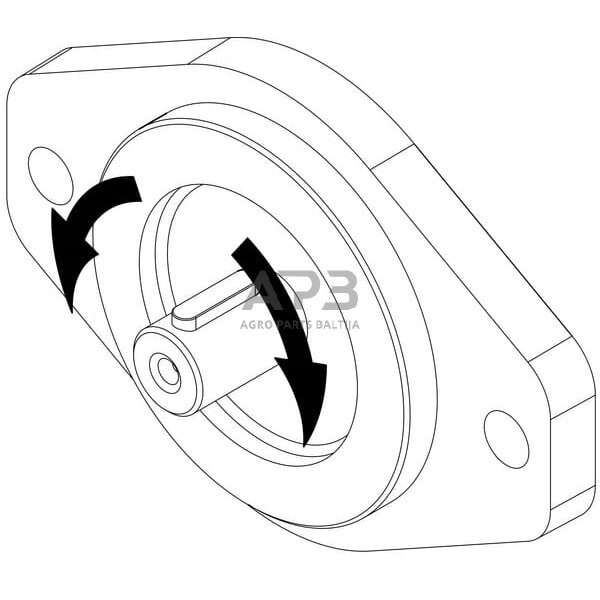

Product Details The letter D or S in the item description indicates the direction of rotation when looking at the pump shaft: D = Clockwise S = Anti-clockwise It is not possible to assemble gopart group 2 gear pumps into multiple pumps.
Flange type norm European
Flange code E2
Number of mounting holes 4
Shaft type Tapered
Shaft cone size code 1:8
Displacement 8 cm³/rev
Sealing type Standard
Max. continous working pressure 180 BAR
Max pressure peak 230 BAR
Max rotation speed 3300 r/min
Prefered rotation direction Clockwise (CW)
Main port size code 1G08
Pressure port size code 1G08
Port position Side

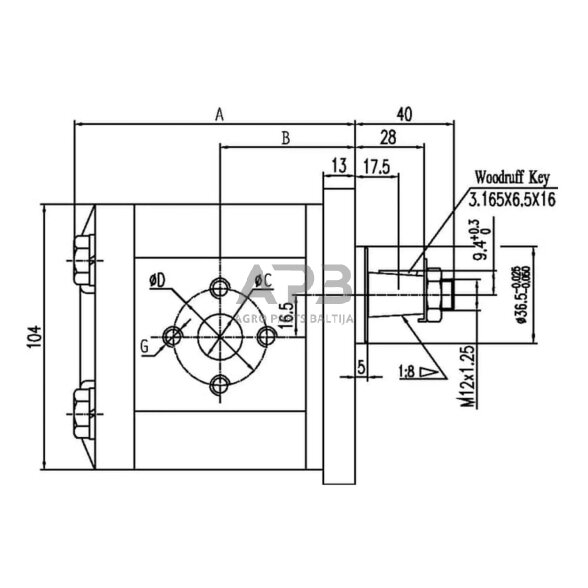

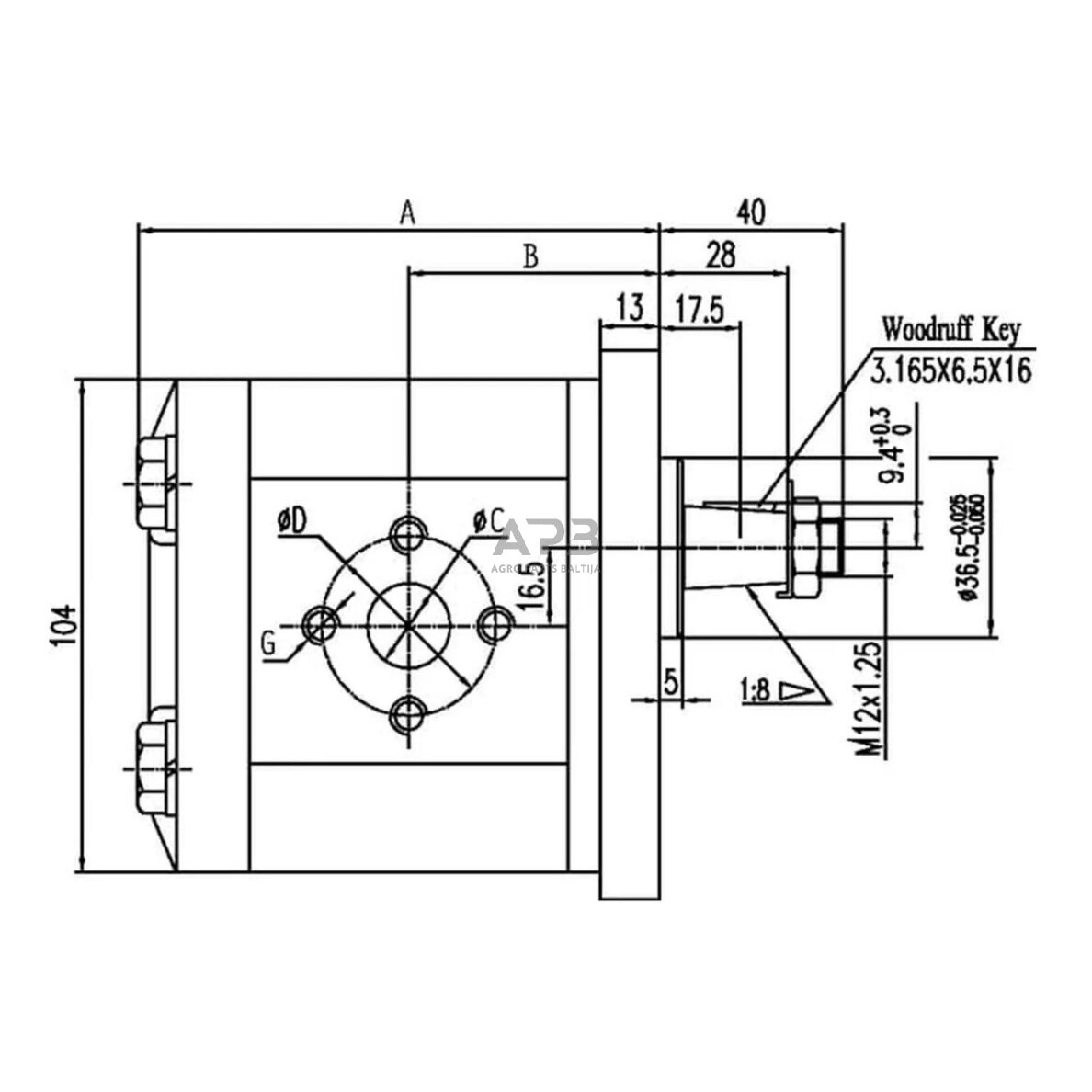

Housing length 102 mm
Housing material Aluminium
Flange and back cover material Steel
B Connection port to flange distance 46.5 mm
Pressure port bolts circle diameter 30 mm
D Suction port bolts circle diameter 30 mm
Mounting diameter 36.5 mm
