Part number GP2020S4030C18EGP
EAN8716106140091
Unit Each
Pros Suitable for heavy-duty conditions Wide range of applications Various connection options

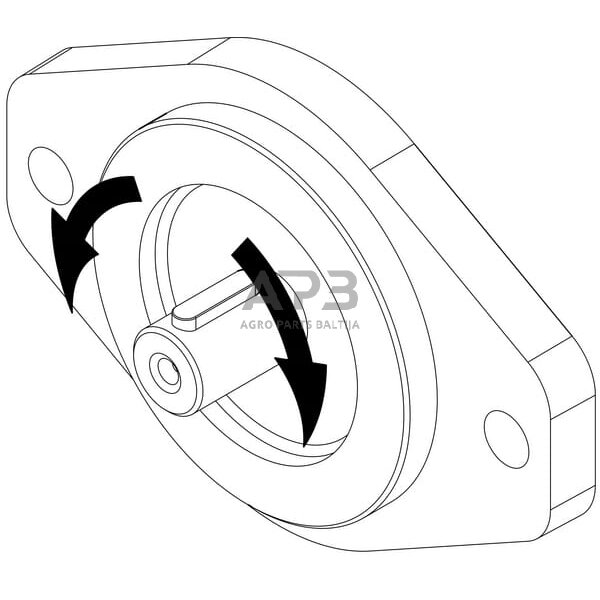

Product Details The letter D or S in the item description indicates the direction of rotation when looking at the pump shaft: D = Clockwise S = Anti-clockwise It is not possible to assemble gopart group 2 gear pumps into multiple pumps.
Flange type norm European
Flange code E2
Number of mounting holes 4
Shaft type Tapered
Shaft cone size code 1:8
Displacement 20 cm³/rev
Sealing type Standard
Max. continous working pressure 180 BAR
Max pressure peak 230 BAR
Max rotation speed 3300 r/min
Prefered rotation direction Counter-clockwise (CCW)
Main port size code 2G12
Pressure port size code 1G08
Port position Side
Housing length 121 mm
Housing material Aluminium
Flange and back cover material Steel
B Connection port to flange distance 56 mm
Pressure port bolts circle diameter 30 mm
D Suction port bolts circle diameter 40 mm
Mounting diameter 36.5 mm
