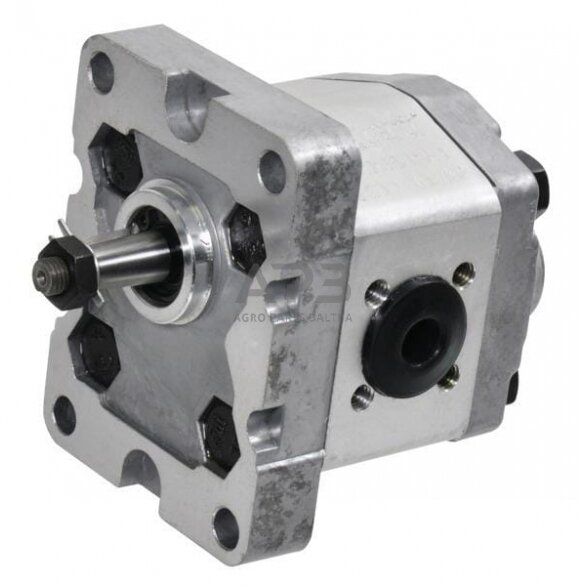

Part number GP105S3030C18EGP
EAN8716106140251
Unit Each
Application range Wide range of applications, especially in mobile and industrial applications

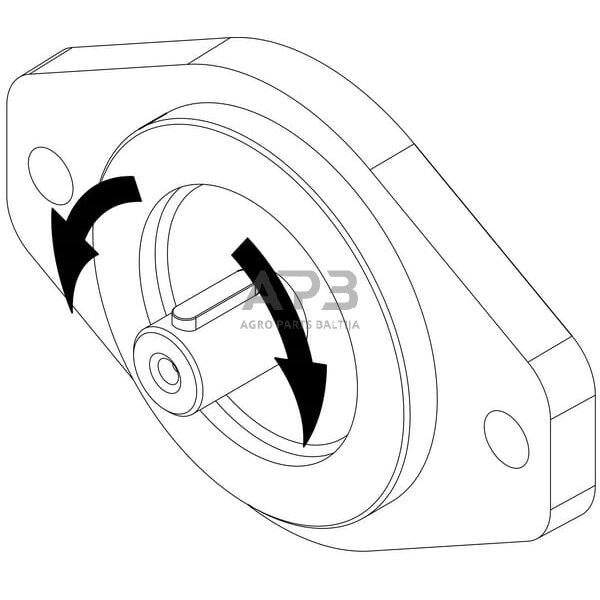

Technical infoGear pumps from gopart can be used in many areas, especially for mobile and industrial applications. The letter D or S in the item description stands for the direction of rotation when looking at the pump shaft: D = clockwise S = anti-clockwise It is not possible to connect gear pumps from group 1 to a multiple-head pump or change them over to a different direction of rotation.
Benefits Good price/performance ratio
Flange type norm European
Flange code E1
Number of mounting holes 4
Shaft type Tapered
Shaft cone size code 1:8
Displacement 4.8 cm³/rev
Sealing type Standard
Max. continous working pressure 160 BAR
Max pressure peak 180 BAR
Max rotation speed 4000 r/min
Prefered rotation direction Counter-clockwise (CCW)
Main port size code 1GQ08
Pressure port size code 1GQ06
Port position Side
Housing length 89 mm
Housing material Aluminium
Flange and back cover material Aluminium
B Connection port to flange distance 41 mm
Pressure port bolts circle diameter 30 mm
Suction port bolts circle diameter 30 mm
Mounting diameter 25.4 mm
