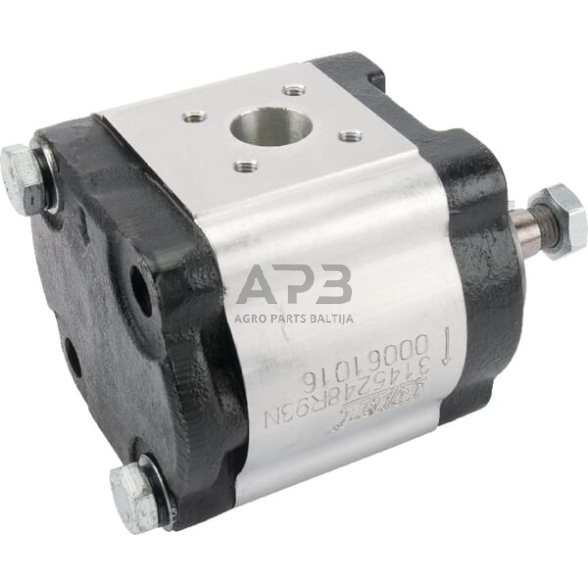

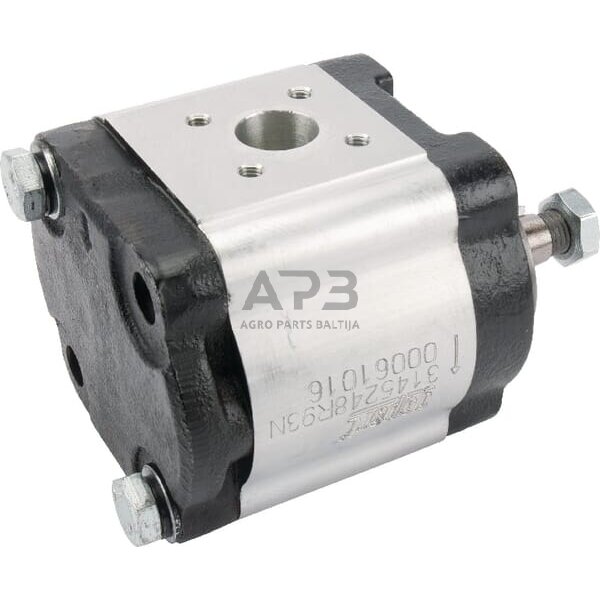

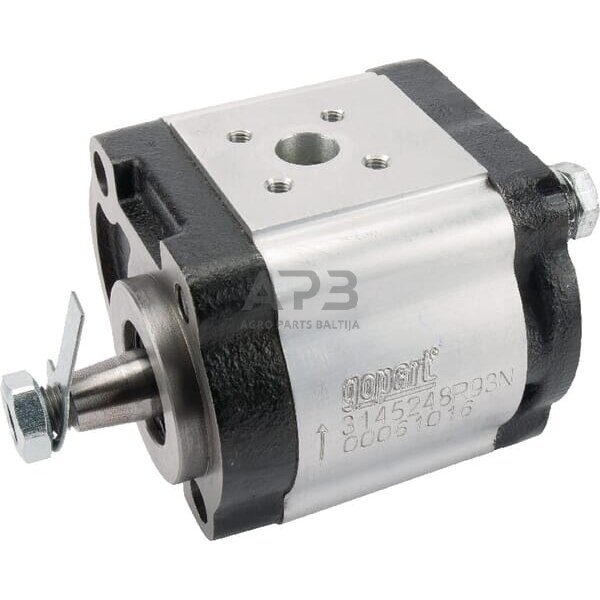

Hidraulinis siurblys gopart 3145248R93N
Hidraulinis siurblys gopart 3145248R93N
Kodas: 846468Kaina 118.53 € su PVMA Housing length 100.7 mm
B Connection port to flange distance 43 mm
E Pressure port bolts circle diameter 35 mm
D Suction port bolts circle diameter 40 mmPrekiniam ženkluigopart-
Part number 3145248R93N
EAN8716106853144
Unit Each
Flange type norm German
Number of mounting holes 4
Shaft type Tapered
Shaft thread diameter M12
Shaft thread pitch 1.50 mm
Shaft cone size code 1:5
Displacement 8.2 cm³/rev
Sealing type Standard
Max. continous working pressure 250 BAR
Max intermittend working pressure 280 BAR
Max pressure peak 300 BAR
Max rotation speed 3000 r/min
Min rotation speed 650 r/min

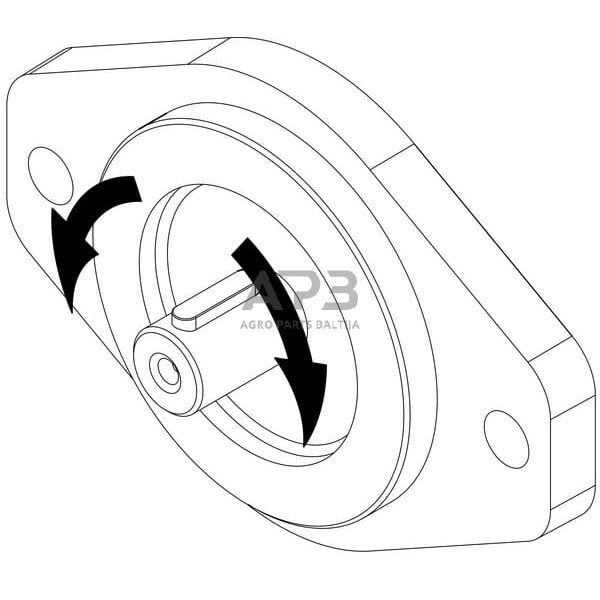

Prefered rotation direction Counter-clockwise (CCW)
Main port size code 2GB12
Pressure port size code 1GB12
Port position Side

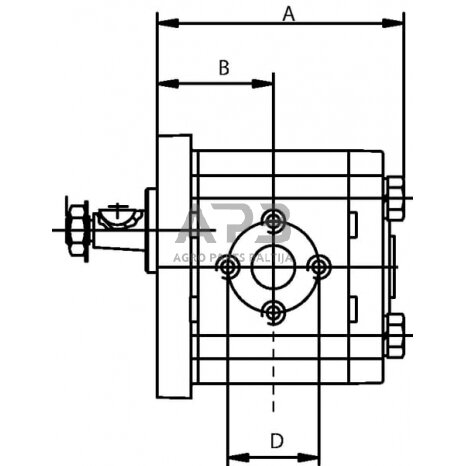

A Housing length 100.7 mm
B Connection port to flange distance 43 mm
E Pressure port bolts circle diameter 35 mm
D Suction port bolts circle diameter 40 mm Susijusios prekės
