Part number PLP206D012E2
EAN
Unit Each
Details Various connection options Outer housing pivoted
Application range Mobile applications Industrial applications
Properties Consists of 3 parts Electrohydraulic ventilator drive Customer-specific design possible
Benefits Wide range of applications Can be used under tough environmental conditions
Flange type norm European
Flange code E2
Number of mounting holes 4
Shaft type Splined
Shaft cone size code n/a
Displacement 6.61 cm³/rev
Sealing type n/a

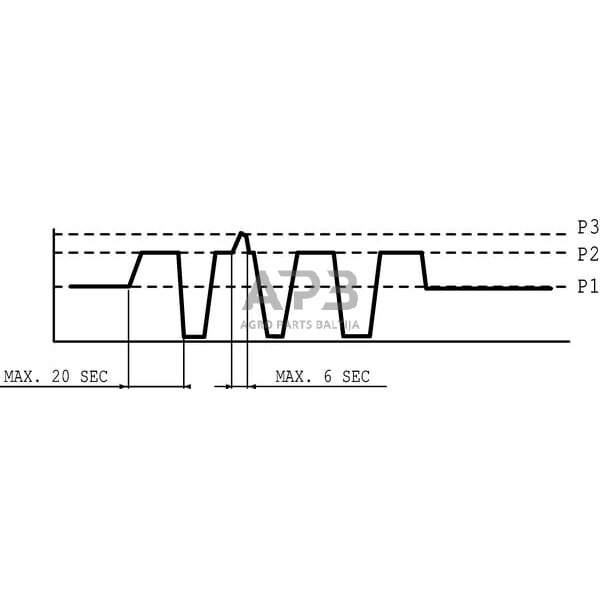

Max. continous working pressure 250 BAR
Max intermittend working pressure 280 BAR
Max pressure peak 300 BAR
Max rotation speed 4000 r/min
Prefered rotation direction Clockwise (CW)
Port position n/a
Housing length 95.5 mm
Housing material Aluminium
Flange and back cover material Steel

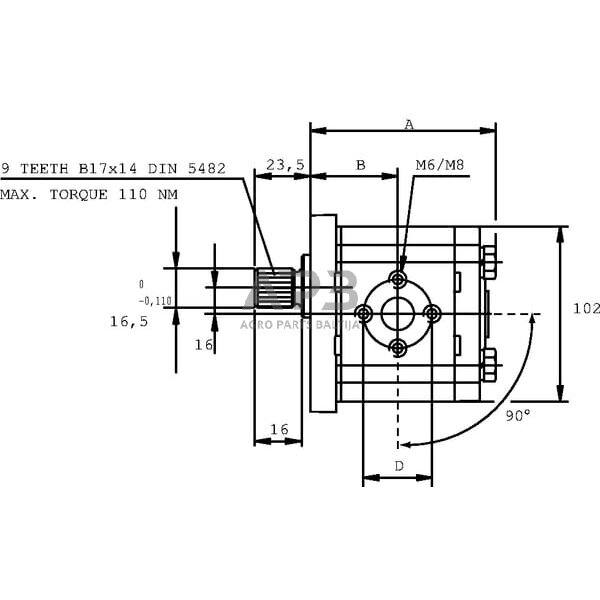

B Connection port to flange distance 45 mm

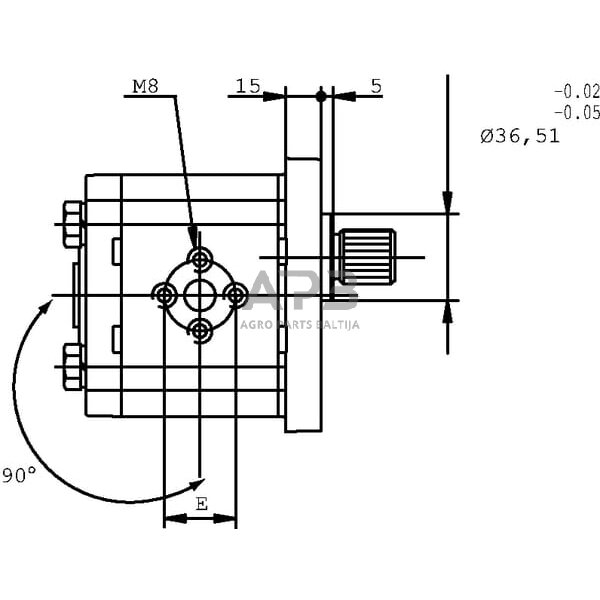

E Pressure port bolts circle diameter 30 mm
D Suction port bolts circle diameter 30 mm
Mounting diameter 60.3 mm
