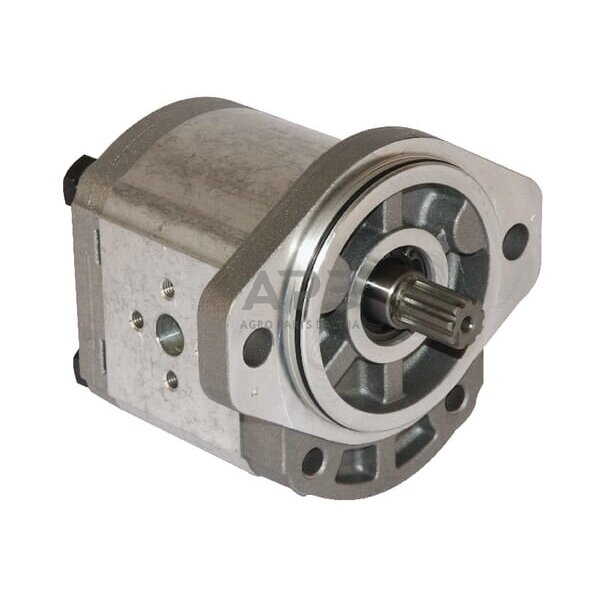

Part number PLP2016S003S2
EAN
Unit Each
Details Various connection options Outer housing pivoted
Application range Mobile applications Industrial applications
Properties Consists of 3 parts Electrohydraulic ventilator drive Customer-specific design possible
Benefits Wide range of applications Can be used under tough environmental conditions
Flange type norm European
Flange code SAE-A S2
Number of mounting holes 2
Shaft type Splined
Shaft number of teeth 9
Shaft cone size code n/a

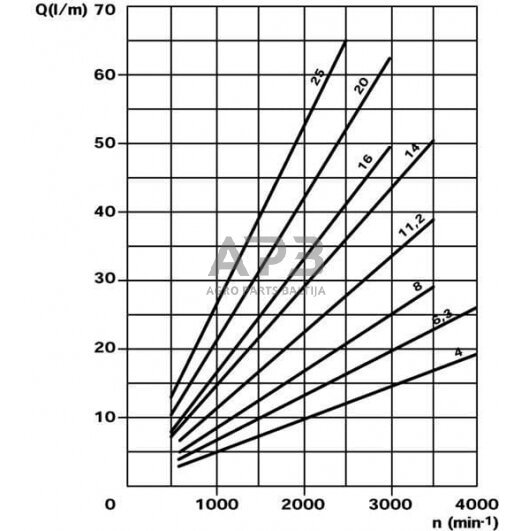

Displacement 16.85 cm³/rev
Sealing type n/a

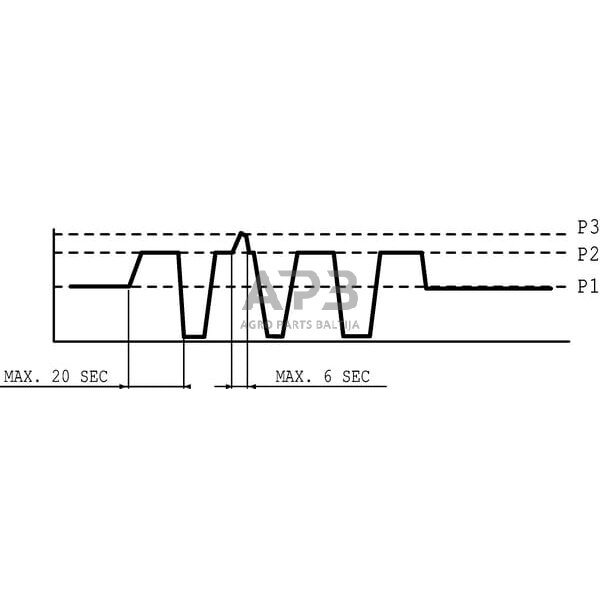

Max. continous working pressure 250 BAR
Max rotation speed 3000 r/min

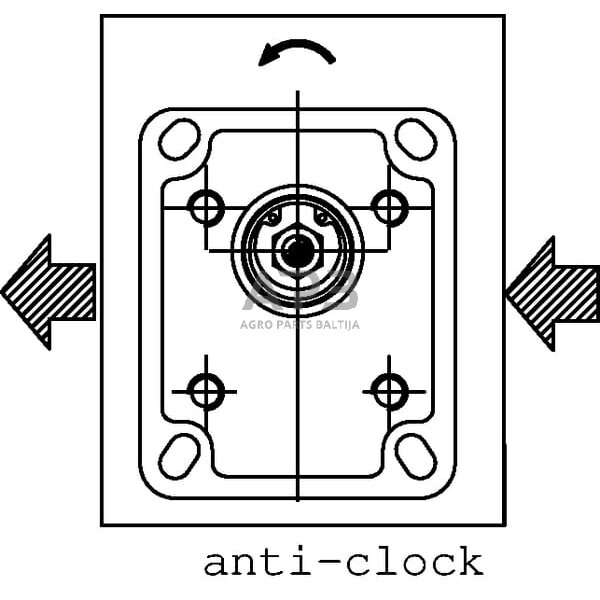

Prefered rotation direction Counter-clockwise (CCW)
Port position n/a

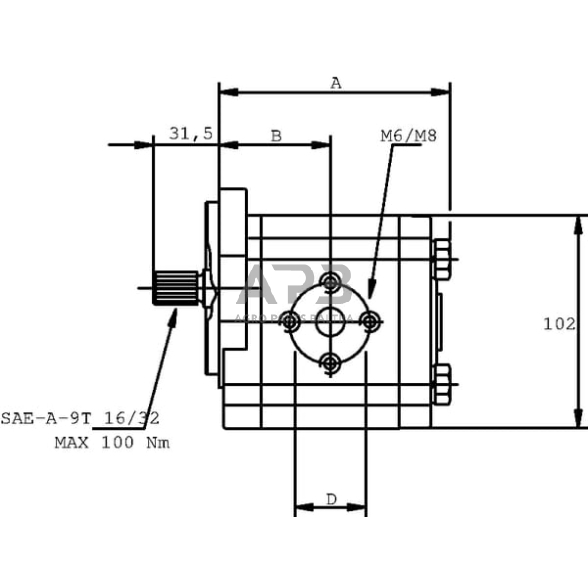

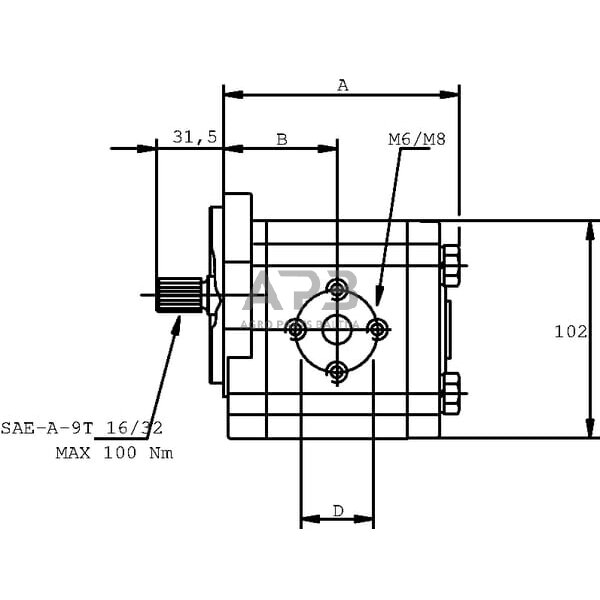

A Housing length 113 mm
Housing material Aluminium
Flange and back cover material Steel
B Connection port to flange distance 54.7 mm

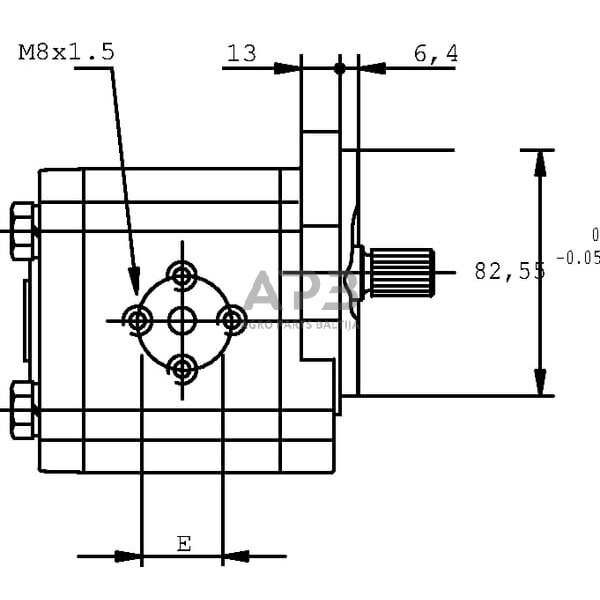

E Pressure port bolts circle diameter 30 mm
D Suction port bolts circle diameter 40 mm
C Mounting diameter 82.55 mm
