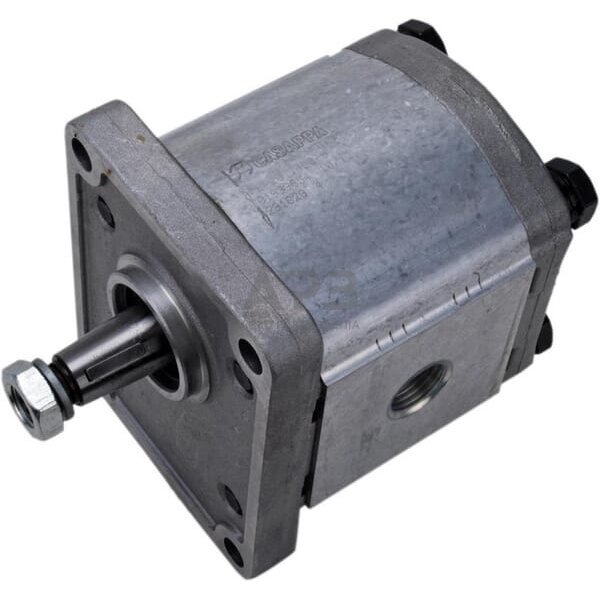

Part number PLP2011D082E2G
EAN
Unit Each
Pros Various connection options Outer housing with bearings Wide range of applications
Product Details Wide range of applications Only minor axial and radial shaft loads are permitted If the pump is fitted with a gear or V-belt pulley, a support bearing must be used. e.g. Order number T222 Customer-specific design possible
Long description Application : Mobile applications Industrial applications Benefits : Wide range of applications Can be used under tough environmental conditions Details : Various connection options Outer housing pivoted Properties : Consists of 3 parts Electrohydraulic ventilator drive Customer-specific design possible

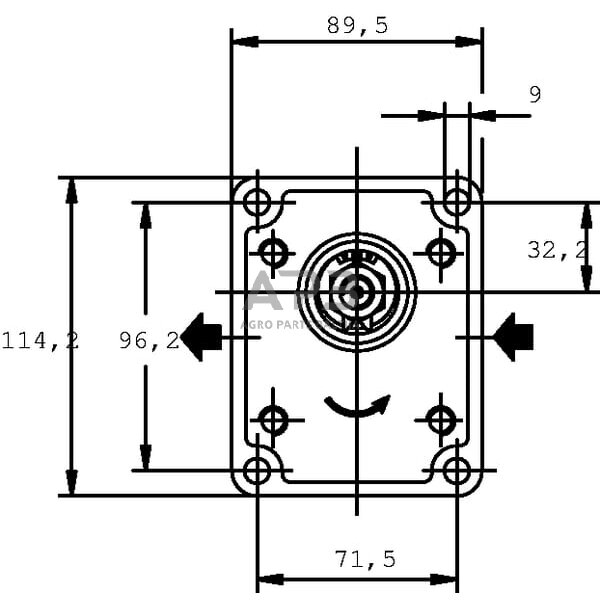

Flange type norm European
Flange code E2
Number of mounting holes 4

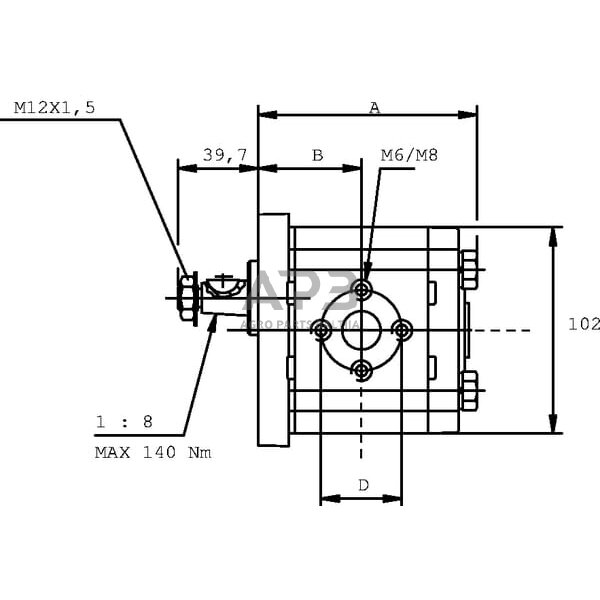

Shaft type Tapered
Shaft cone size code 1:8

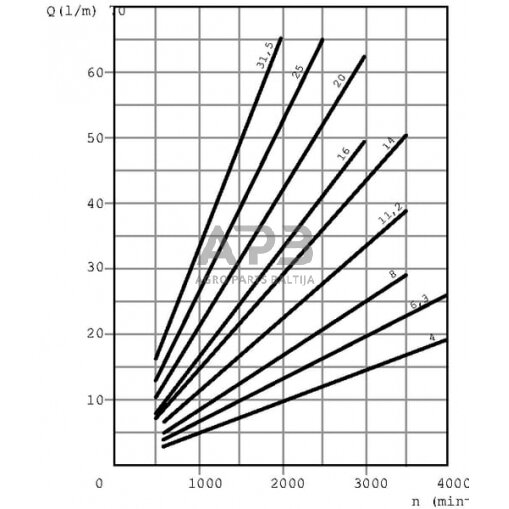

Displacement 11.23 cm³/rev
Sealing type Standard

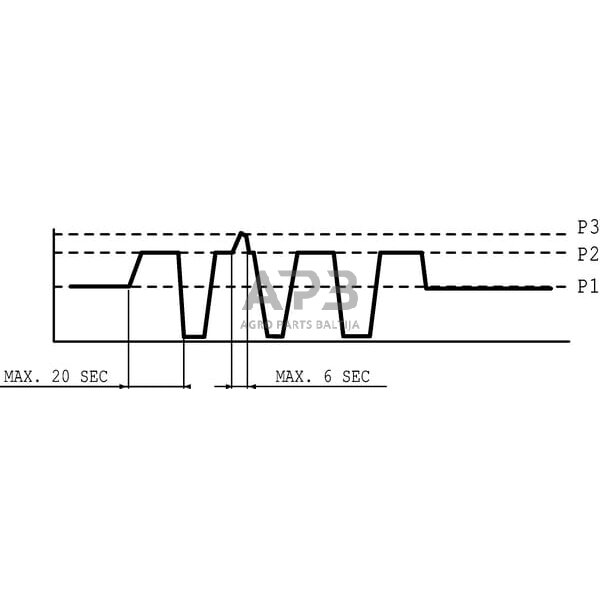

Max. continous working pressure 250 BAR
Max intermittend working pressure 280 BAR
Max pressure peak 300 BAR
Max rotation speed 3500 r/min

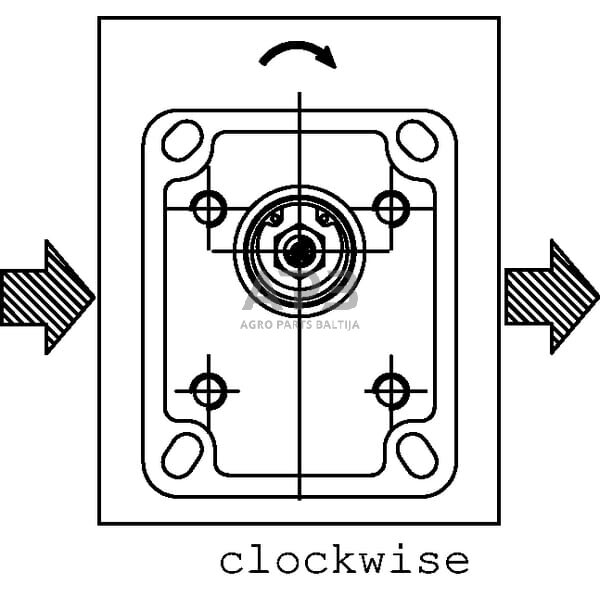

Prefered rotation direction Clockwise (CW)
Main port thread type BSP
Main port thread diameter 1/2 Inch
Pressure port thread type BSP
Pressure port thread diameter 1/2 Inch
Port position Side
Housing length 102.5 mm
Housing material Aluminium
Flange and back cover material Steel
B Connection port to flange distance 48.5 mm
Mounting diameter 36.5 mm
