Part number PLP103D081E1G
EAN
Unit Each
Long description Polaris group 1
Details Various connection options Outer housing pivoted
Application range Mobile applications Industrial applications
Properties Consists of 3 parts Electrohydraulic ventilator drive Customer-specific design possible
Benefits Wide range of applications Can be used under tough environmental conditions

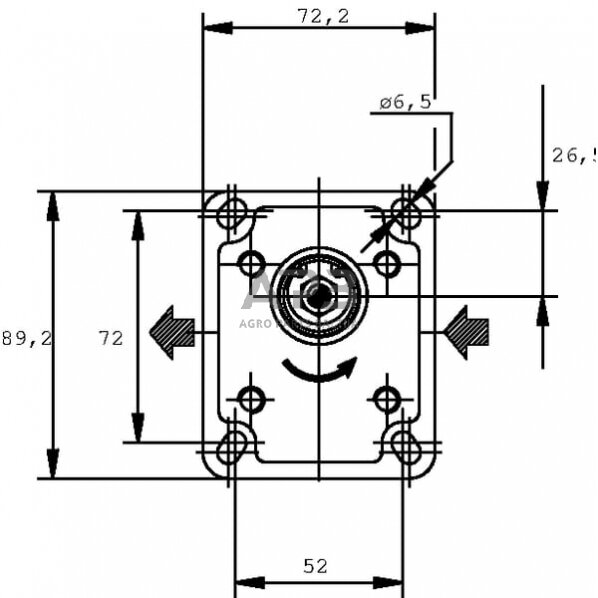

Flange type norm European
Flange code E1
Number of mounting holes 4
Shaft type Tapered
Shaft cone size code 1:8
Displacement 3.34 cm³/rev
Sealing type Standard

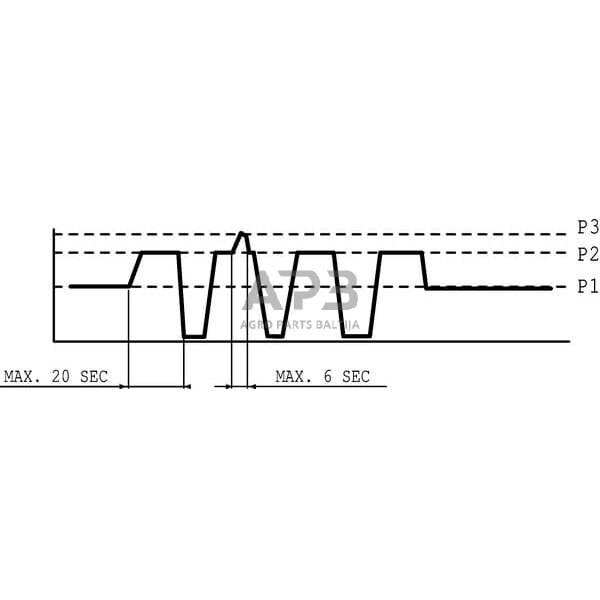

Max. continous working pressure 260 BAR
Max intermittend working pressure 280 BAR
Max pressure peak 290 BAR
Max rotation speed 4000 r/min
Prefered rotation direction Clockwise (CW)
Main port thread type BSP
Main port thread diameter 3/8 Inch
Pressure port thread type BSP
Pressure port thread diameter 3/8 Inch
Port position Side
Housing length 73 mm
Housing material Aluminium
Flange and back cover material Aluminium
B Connection port to flange distance 35 mm
Mounting diameter 25.4 mm
