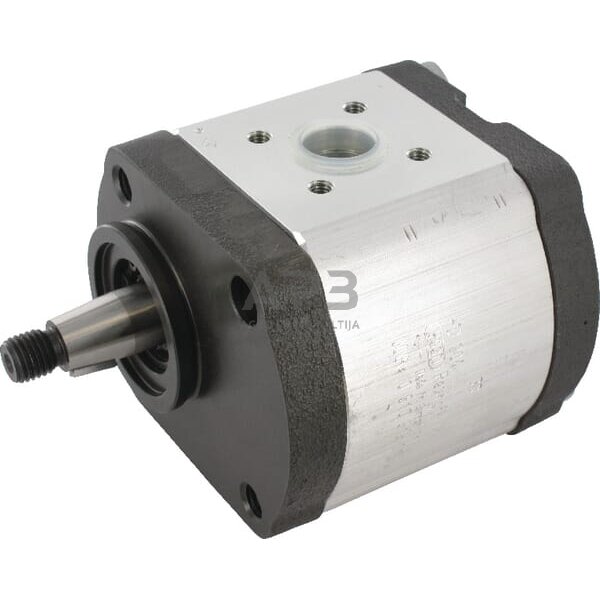

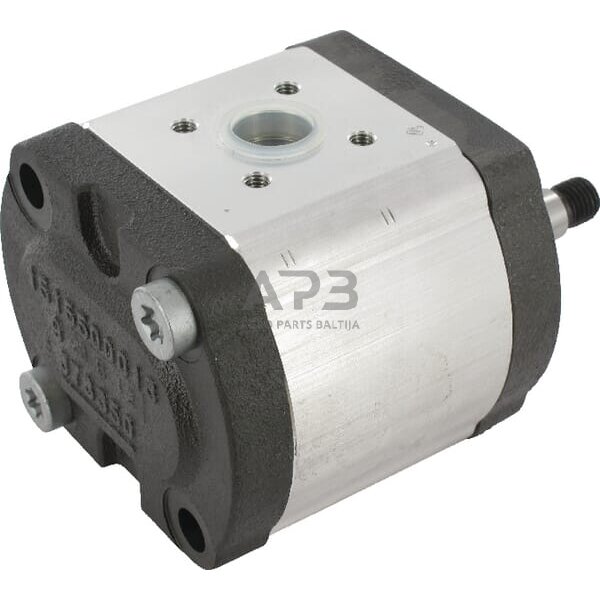

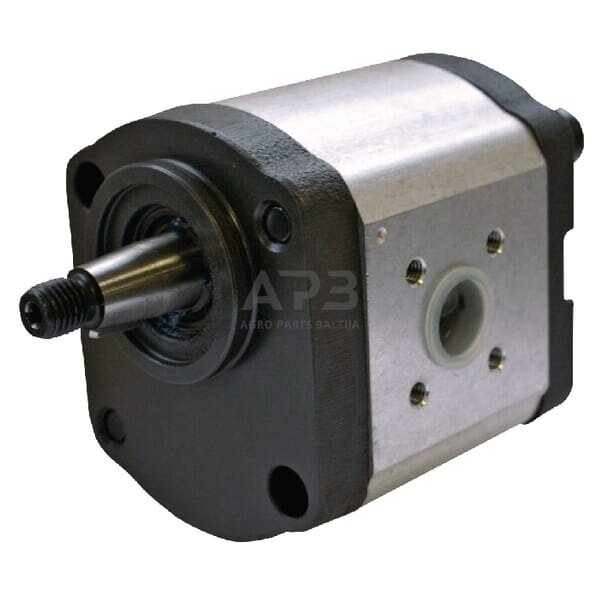

Part number 0510515316
EAN
Unit Each
Flange type norm German
Flange code n/a
Number of mounting holes 4
Shaft type Tapered
Shaft thread typeMetric
Shaft thread diameter M12
Shaft thread pitch 1.50 mm
Shaft cone size code 1:5
Displacement 14 cm³/rev
Sealing material Fluo rubber [FPM]
Sealing type Standard
Max. continous working pressure 250 BAR
Max intermittend working pressure 280 BAR
Max pressure peak 300 BAR
Max rotation speed 2500 r/min
Min rotation speed 1000 r/min

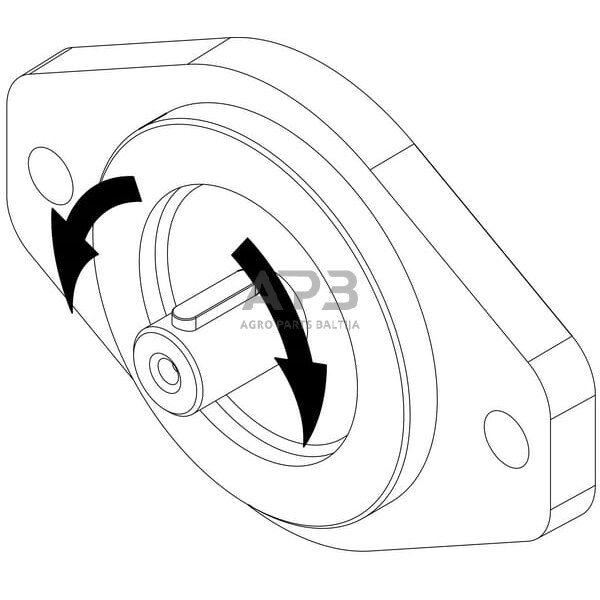

Prefered rotation direction Counter-clockwise (CCW)
Port position Side
Weight 2.85 kg
Housing material Aluminium
Flange and back cover material Steel
Pressure port bolts circle diameter 35 mm
Suction port bolts circle diameter 40 mm
Suitable for machine/vehicle brand Claas New Holland
Mounting diameter 50 mm
Original number equivalent R918C00644 0510515333 01176003 G144940012010 G144910012010 G1449400012010 0510512302 1174517 G238401100012 G278941100010 G2789411000010 0510515305 1262595 G281940010010 0510512304 1262639 1261595 1262640 1261639 2239044 2308341
