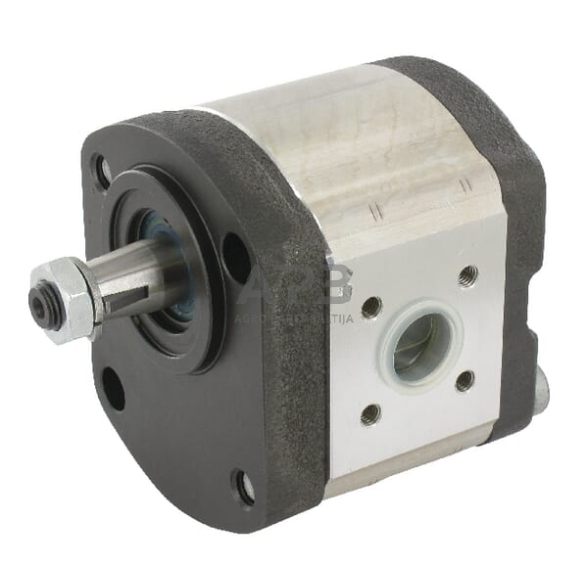

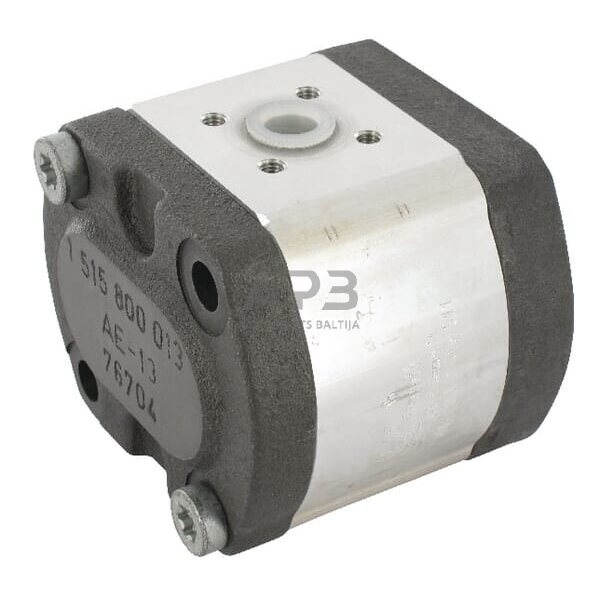

Part number 0510415311
EAN
Unit Each
Flange type norm German
Flange code n/a
Number of mounting holes 4
Shaft type Tapered
Shaft thread typeMetric
Shaft thread diameter M12
Shaft thread pitch 1.50 mm
Shaft cone size code 1:5
Displacement 8 cm³/rev
Sealing material Fluo rubber [FPM]
Sealing type Standard
Max. continous working pressure 250 BAR
Max intermittend working pressure 280 BAR
Max pressure peak 300 BAR
Max rotation speed 4000 r/min
Min rotation speed 700 r/min

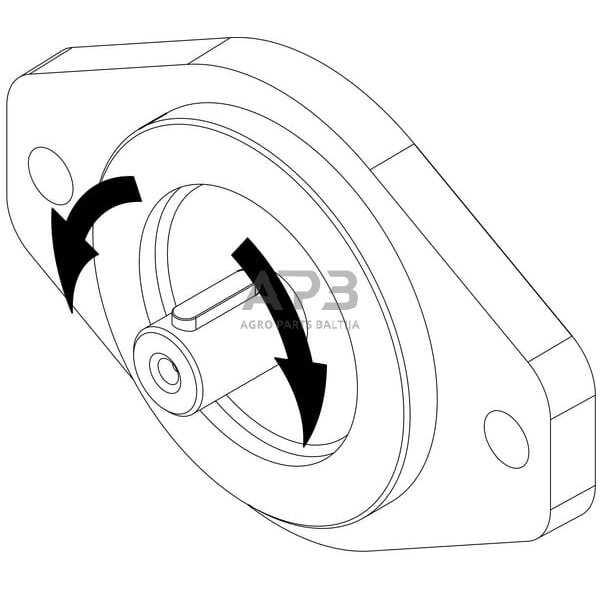

Prefered rotation direction Counter-clockwise (CCW)
Port position Side
Weight 2.85 kg
Housing material Aluminium
Flange and back cover material Steel
Pressure port bolts circle diameter 35 mm
Suction port bolts circle diameter 40 mm
Suitable for machine/vehicle brand Claas New Holland John Deere
Mounting diameter 50 mm
Original number equivalent R918C00329 3145248R93 G231941010010 AL37753 1986963C1 0510415301 AL10681 0510415303 AL16301 0510415306
