Part number SVP10NCR004
EAN
UnitEach
Application rangeCut-off valve Pump circulation in open systems Way valve Load-holding valve
PropertiesVoltage can be varied by replacing the coil

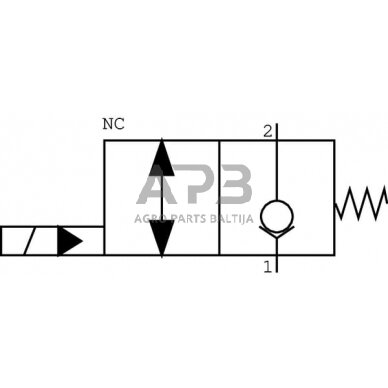

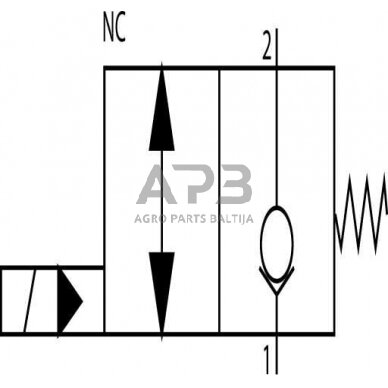

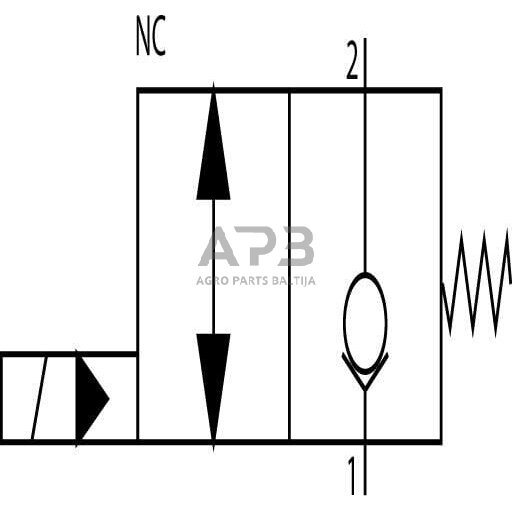

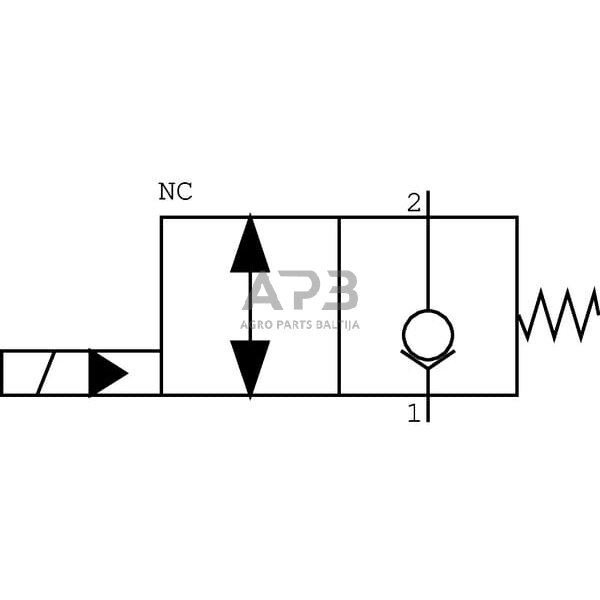

Technical infoIntegrated line valve Free flow from 1 to 2 Seat valve, electrical on/off
Flow rate80 l/min
Max. leakage6 cm³/min
TypeNormally close (NC)
Max working pressure230 BAR

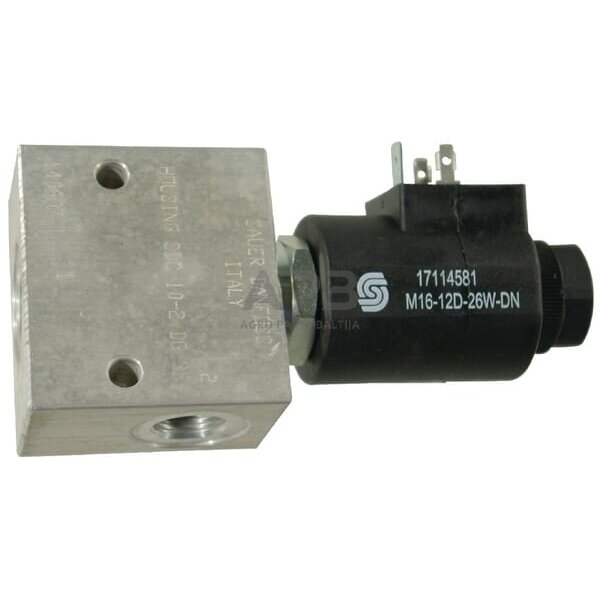

Consists ofCartridge Housing Coil Without plug
Pilot pressure3 BAR
Voltage (DC)24 V
Duty cylce100 %
Port thread connection1/2 Inch
Thread typeBSP
Housing materialAluminium
Sealing materialNitrile rubber [NBR]
Total height70 mm
Housing height60 mm
Housing length120 mm
Housing width35 mm
Mounting holes distance45 mm
