Part number SVP08NCR001
EAN
UnitEach
Application rangeHigh pressure and medium volume flow Cut-off valve Pump circulation in open systems Way valve Load-holding valve
PropertiesVoltage can be varied by replacing the coil

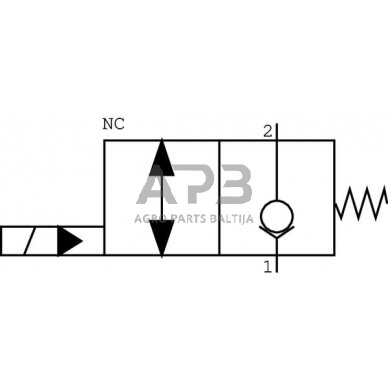

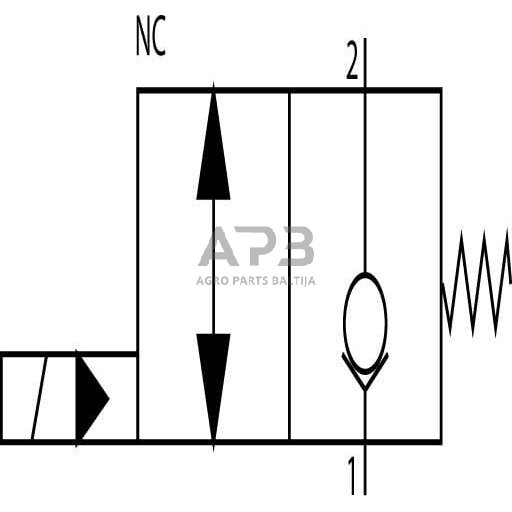

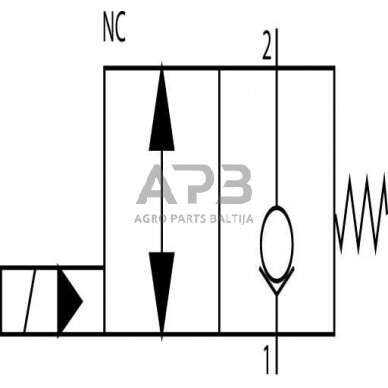

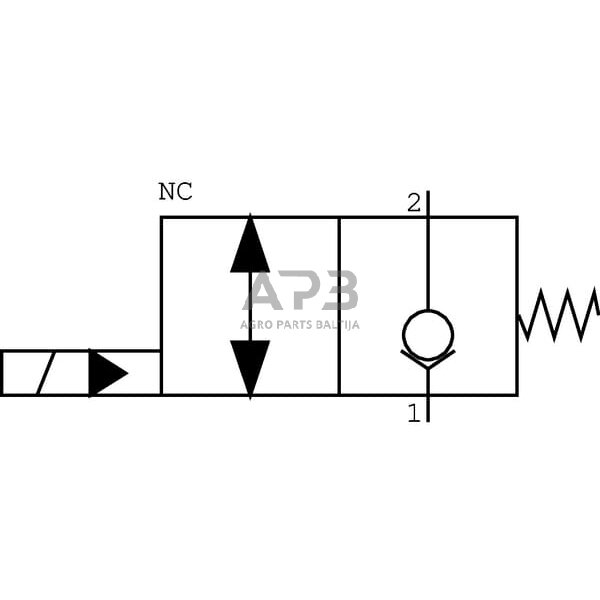

Technical infoIntegrated line valve Flow from 1 to 2 Seat valve, electrical on/off
Flow rate35 l/min
TypeNormally close (NC)
Max working pressure230 BAR

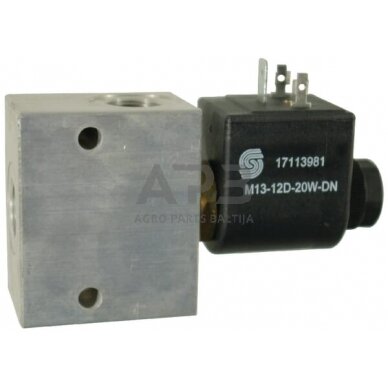

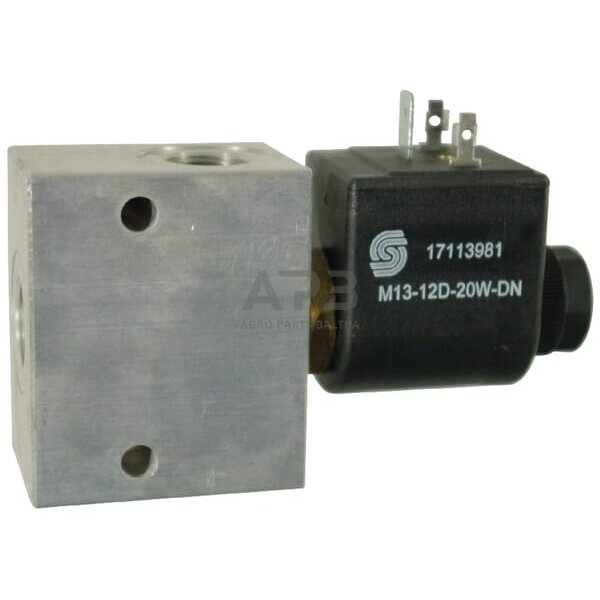

Consists ofCartridge Housing Coil Without plug
Pilot pressure3 BAR
Voltage (DC)12 V
Duty cylce100 %
Port thread connection3/8 Inch
Thread typeBSP
Housing materialAluminium
Sealing materialNitrile rubber [NBR]
Total height60 mm
Housing height50 mm
Housing length110 mm
Housing width35 mm
Mounting holes distance45 mm
