Part number 4528050040
EAN4057875207566
Unit Each
Long description Connecting the compressed-air brake system of the motor vehicle to the brake system of the trailer

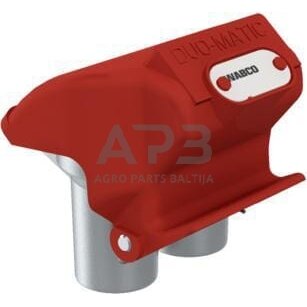

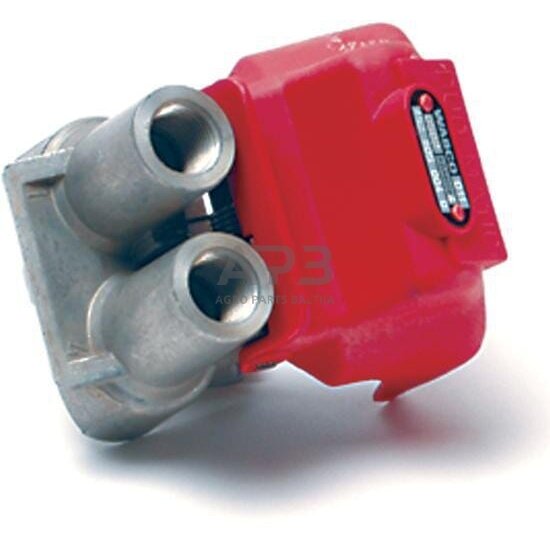

Details Duo-Matic quick coupling
Pros Faster and more secure coupling than with conventional couplings
Product Details Max. operating pressure: 10 bar Nominal width: 9mm
Application range For draw-bar trailers Connecting the compressed-air brake system of the motor vehicle to the brake system of the trailer
Properties Max. operating pressure: 10 bar Nominal width: 9 mm
Benefits Faster and more secure coupling than with conventional couplings
Connection M16 x 1.5
Connection 2 M16 x 1.5
Length 153 mm
Type Semitrailer
Height 63 mm
Application Motor Vehicle
Width 106 mm
Pressure max.10 BAR
Extra info ABE is an approval certificate
Comment With ABE
Max Temperature 80 °C
Min Temperature -40 °C
Connection 3 M16 x 1.5
Version Without lever
